C100 To C313: C101

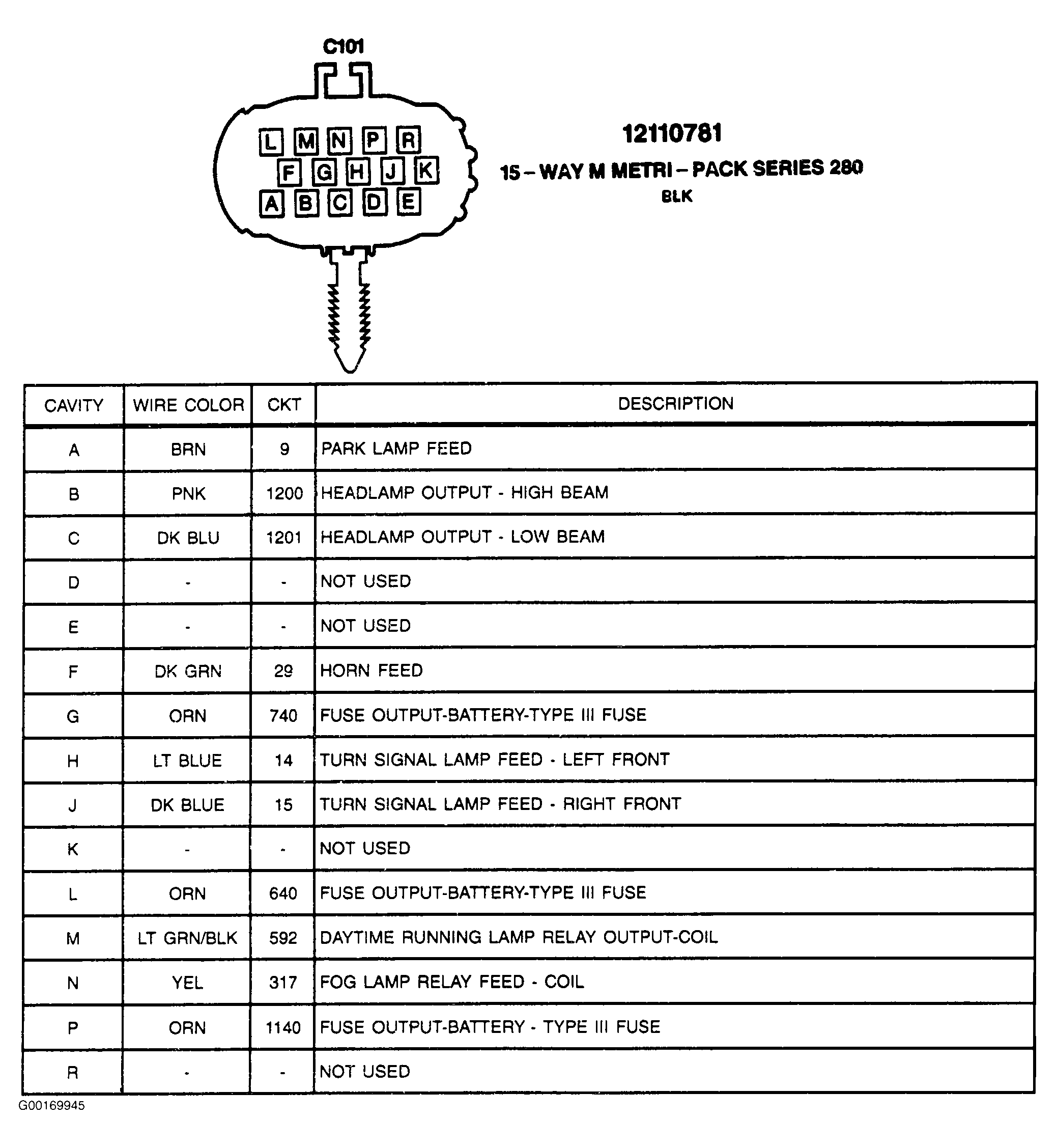

Fig 1: C101 - 15-Pin Connector (Black)

G00169945

Courtesy of GENERAL MOTORS CORP.
