C100 To C313: C200

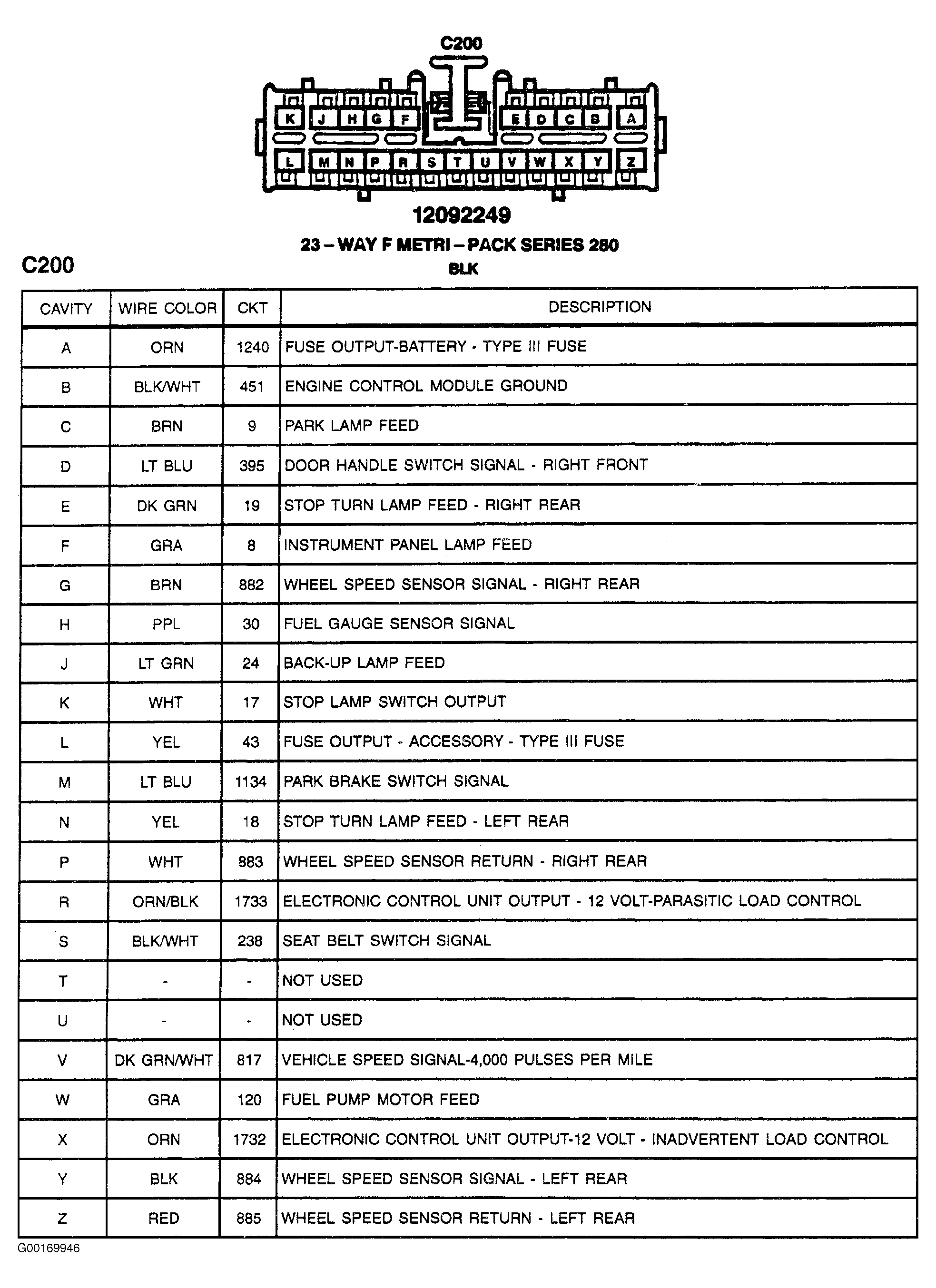

Fig 1: C200 - 23-Pin Connector (Black)

G00169946

Courtesy of GENERAL MOTORS CORP.
