Convenience Center C1 & C2

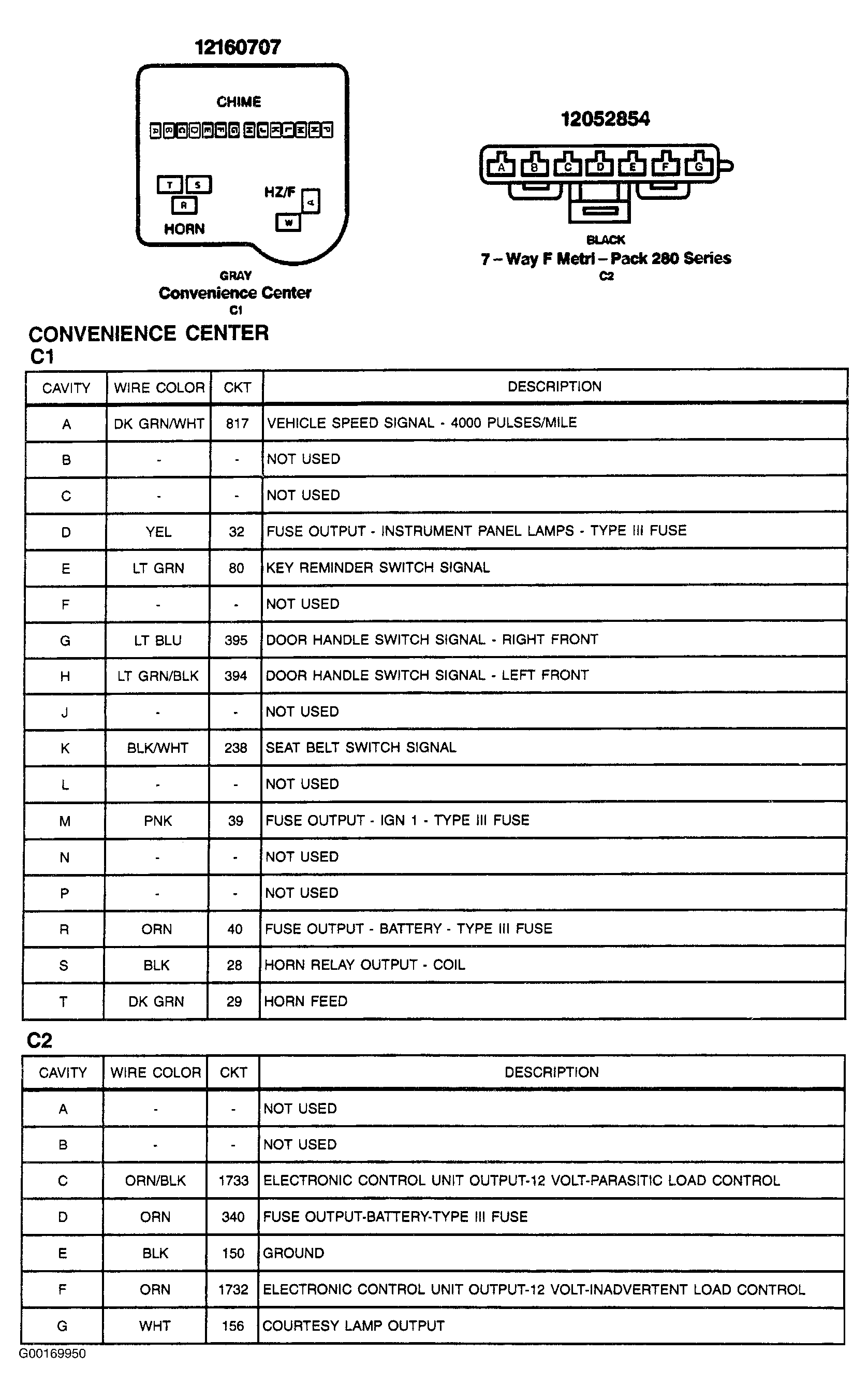

Fig 1: Convenience Center C1 & C2 - 17-Pin Connector (Gray) & 7-Pin Connector (Black)
G00169950Courtesy of GENERAL MOTORS CORP.
