Daytime Running Lamps Relay

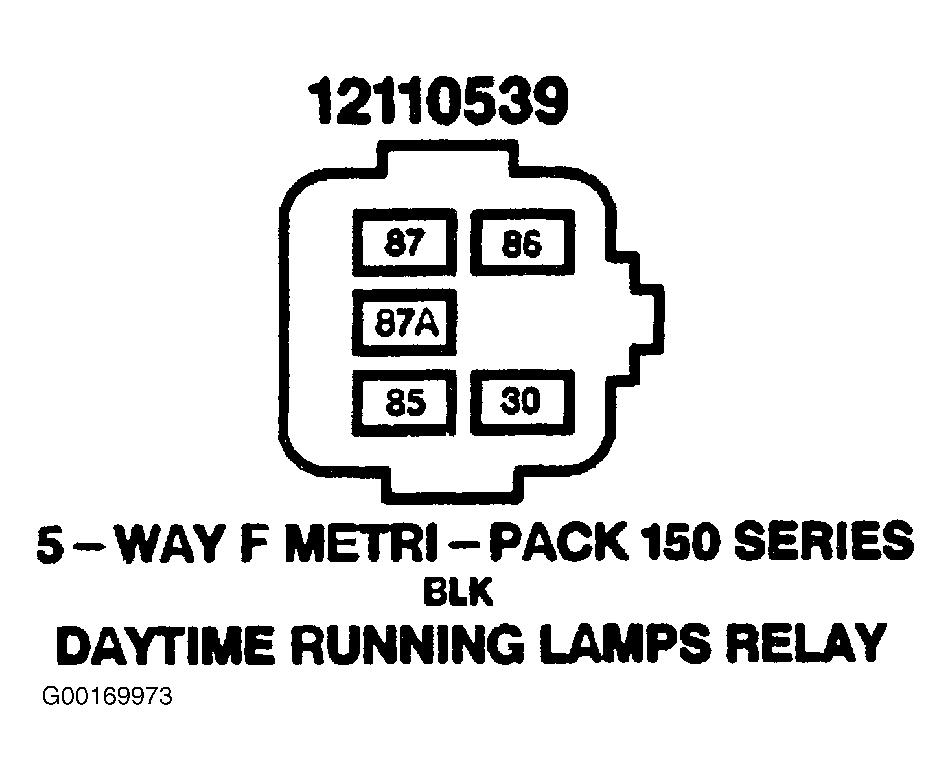

Fig 1: Daytime Running Lamps Relay - 5-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
