Ignition Switch C1 & C2

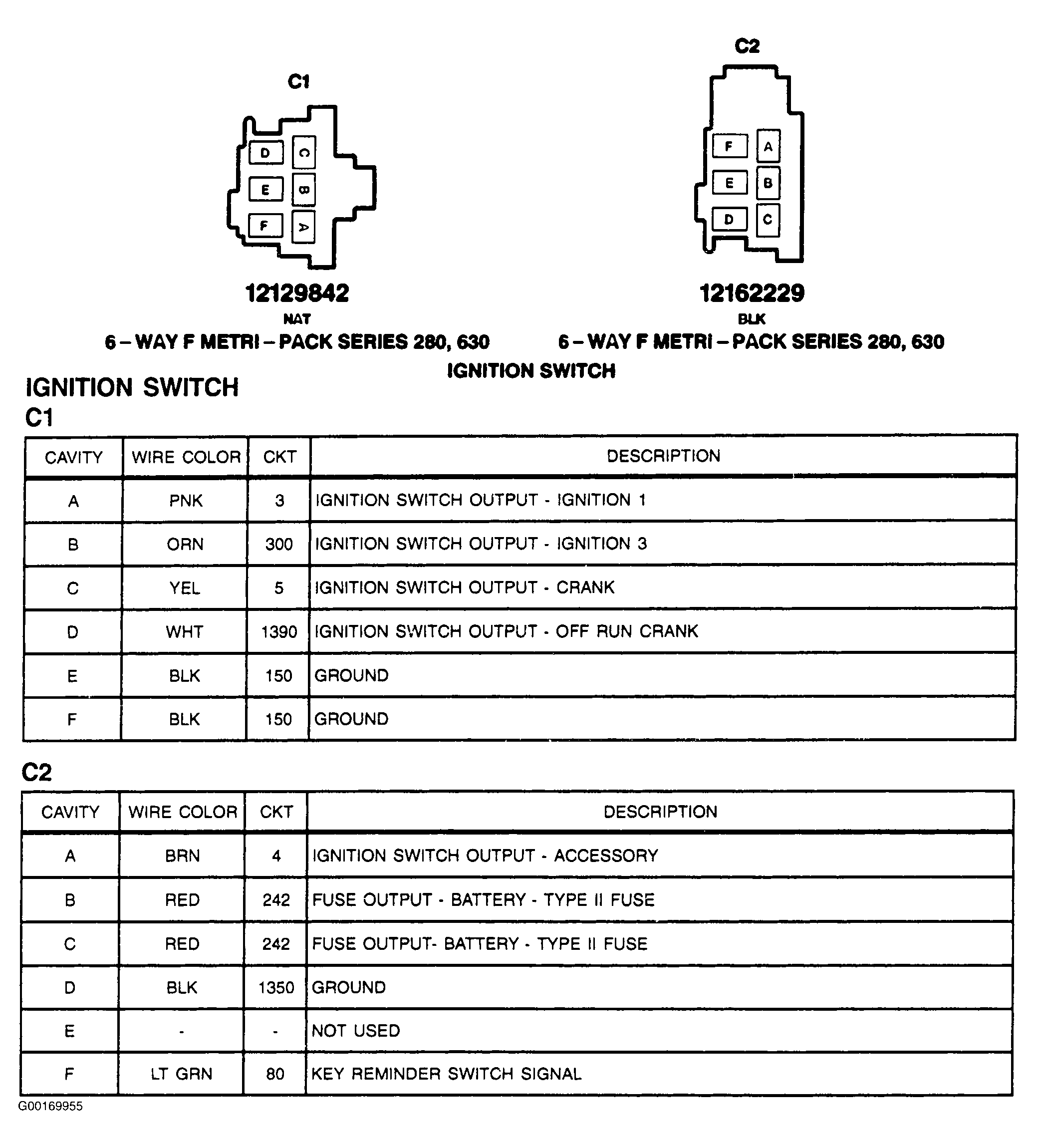

Fig 1: Ignition Switch C1 & C2 - 6-Pin Connector (Natural) & 6-Pin Connector (Black)
G00169955Courtesy of GENERAL MOTORS CORP.
