Scan Tool Does Not Communicate W/Components

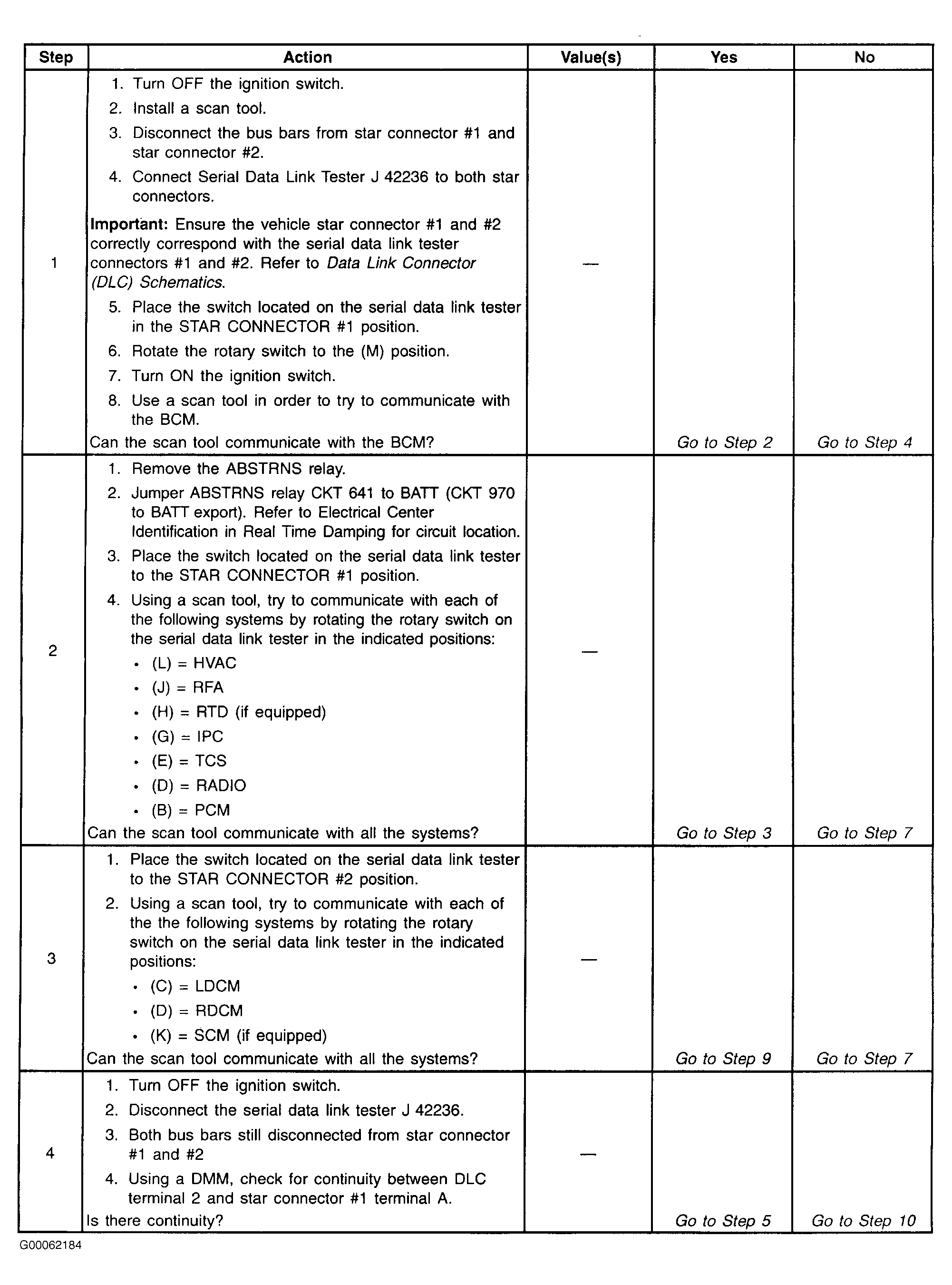

Fig 1: Scan Tool Does Not Communicate W/Components - Steps 1-4 (1 Of 2)
G00062184Courtesy of GENERAL MOTORS

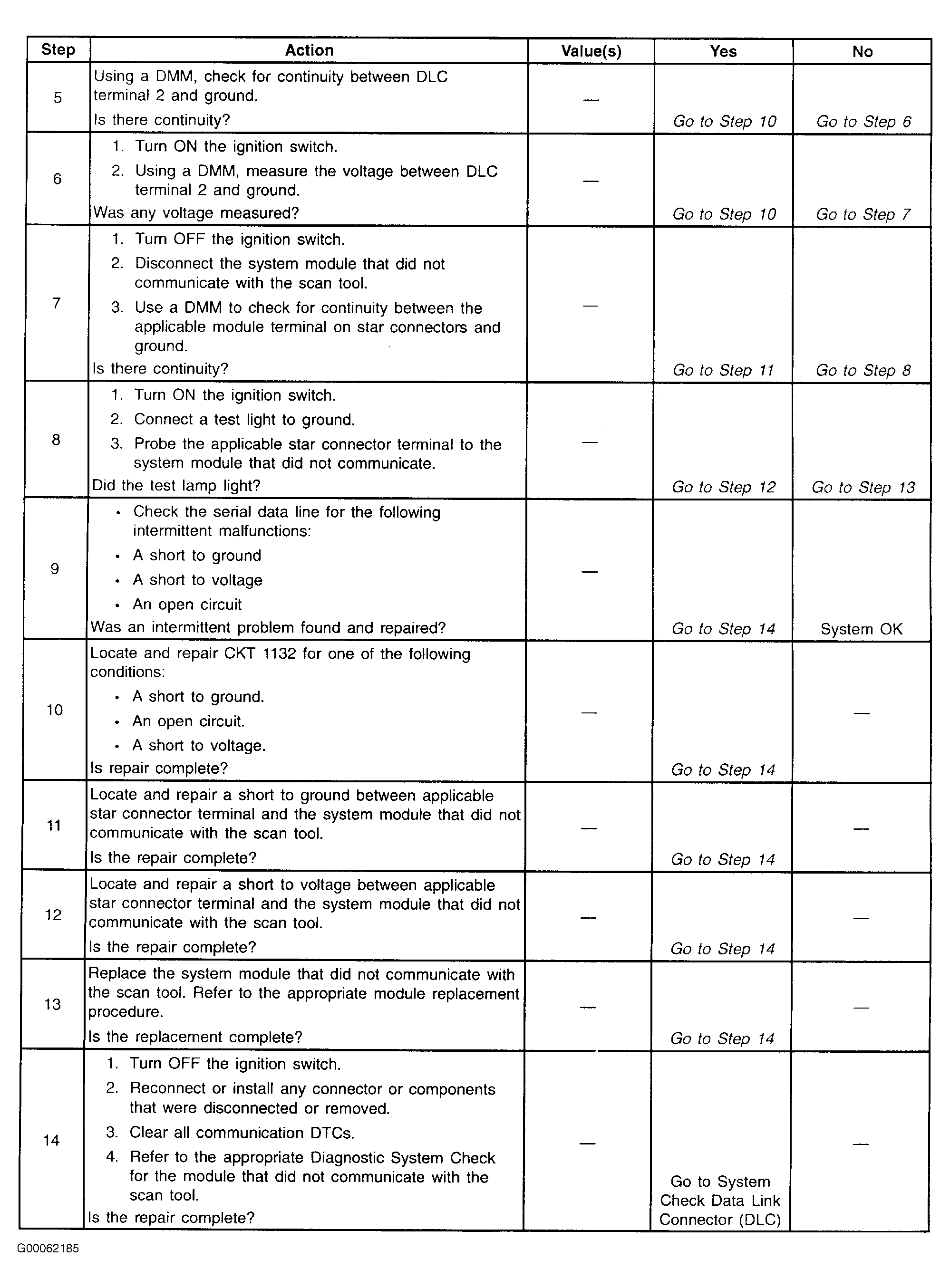

Fig 2: Scan Tool Does Not Communicate W/Components - Steps 5-14 (2 Of 2)
G00062185Courtesy of GENERAL MOTORS
