A/C Refrigerant Pressure Sensor

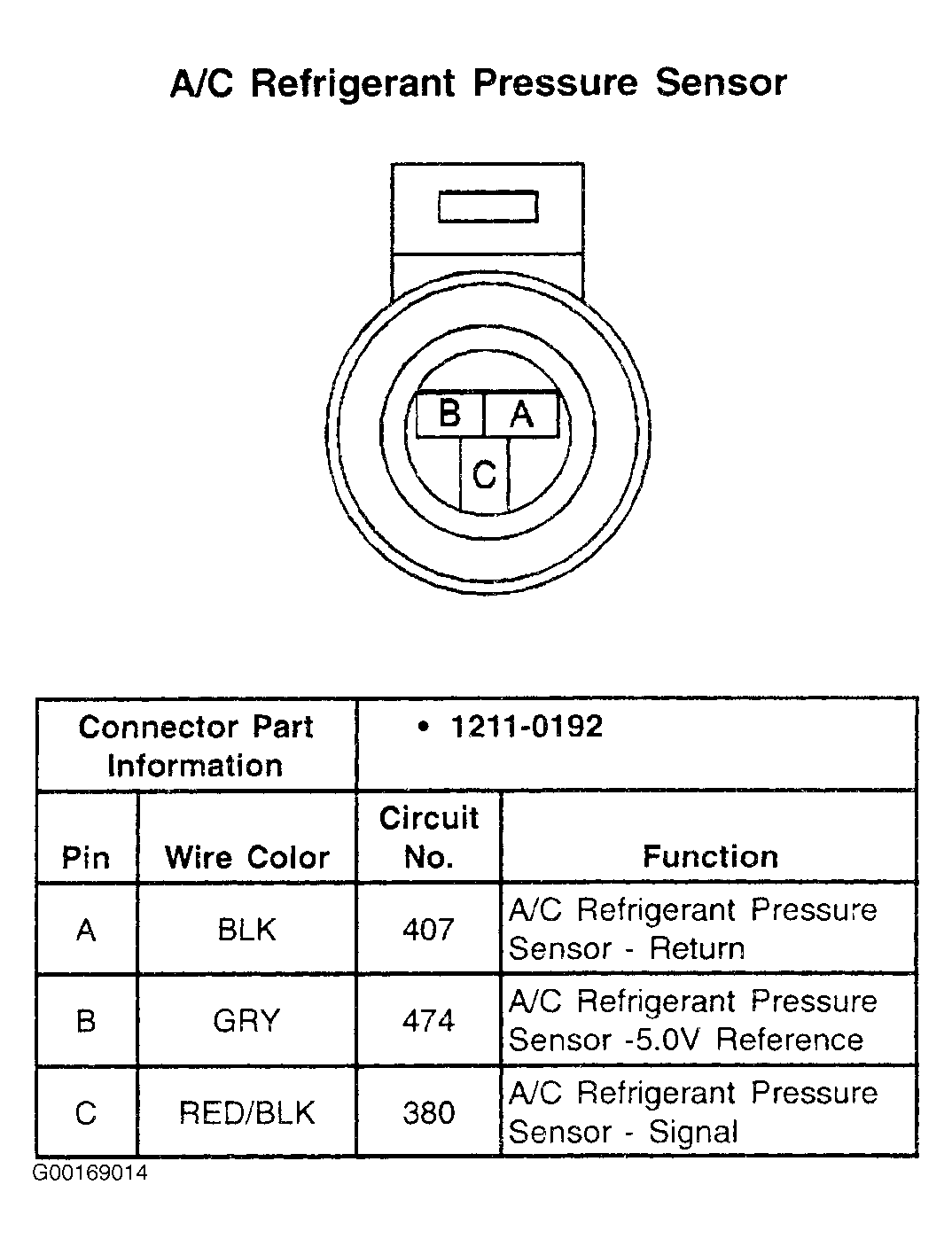

Fig 1: A/C Refrigerant Pressure Sensor - 3-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
