Accessory Plug

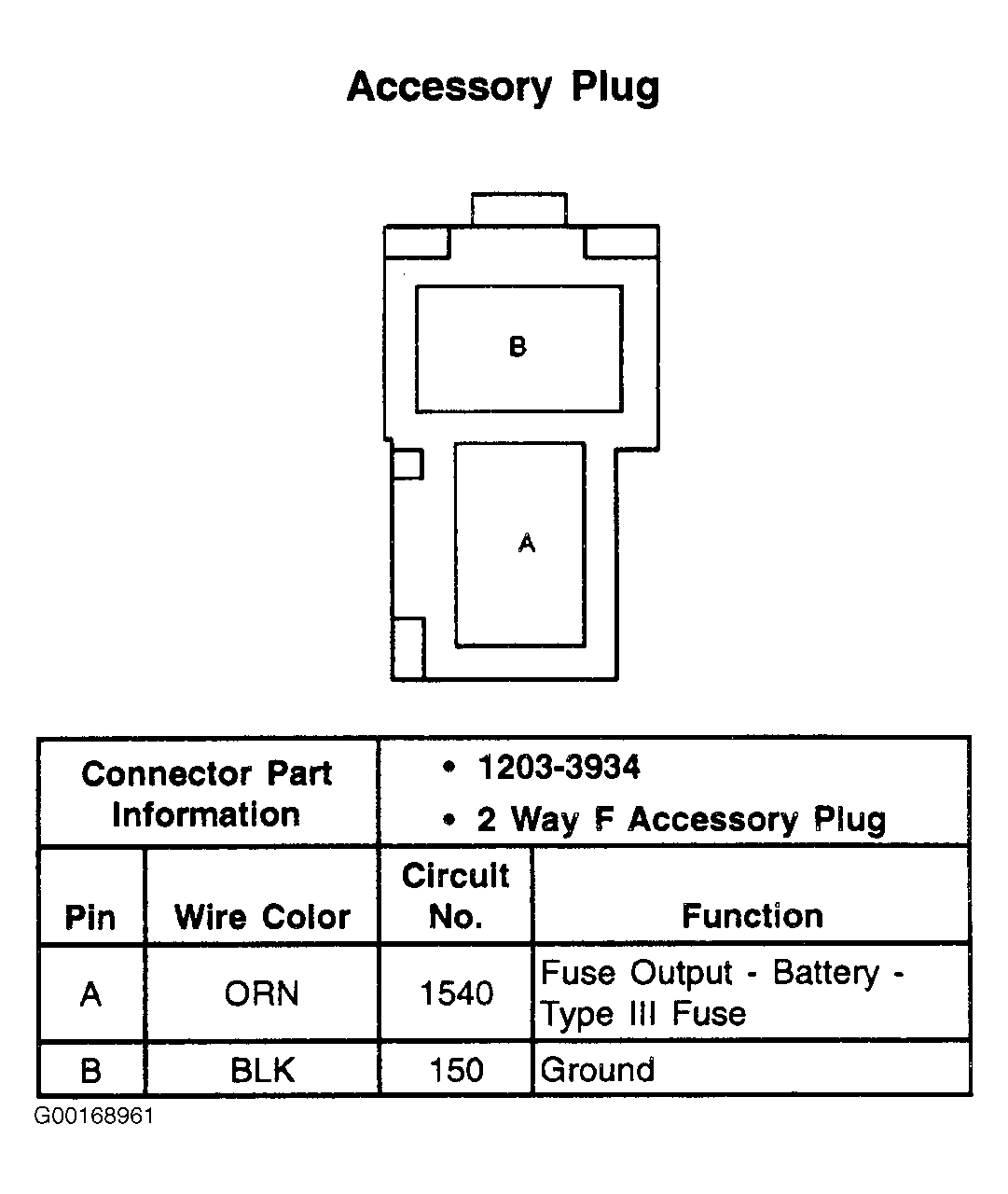

Fig 1: Accessory Plug - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
