Home
>>
Chevrolet
>>
1997
>>
Corvette Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification
>>
BOSE(R) Signal Processor
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
BOSE(R) Signal Processor

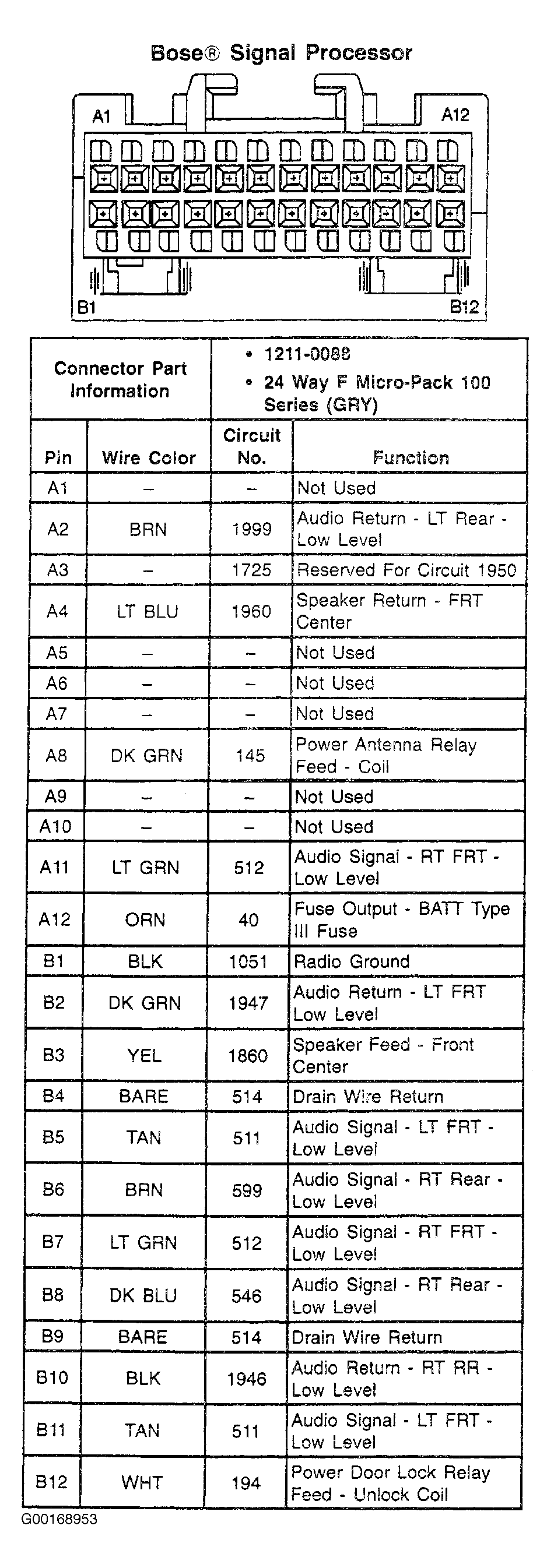

Fig 1: Bose(R) Signal Processor - 24-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
