Electronic Traction Control Switch

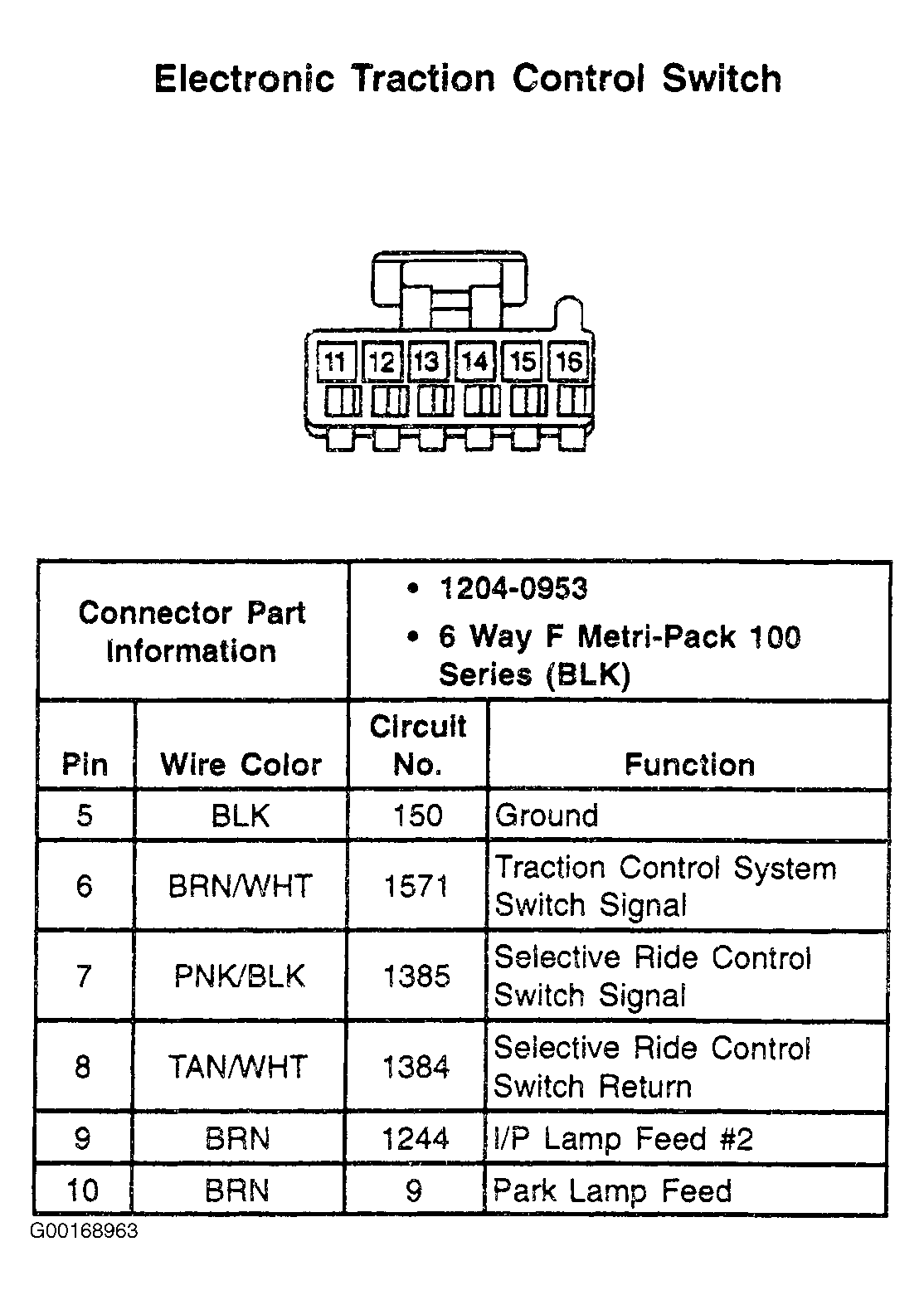

Fig 1: Electronic Traction Control Switch - 6-Pin Connector (Black)
G00168963Courtesy of GENERAL MOTORS CORP.
