Engine Coolant Level Indicator Switch

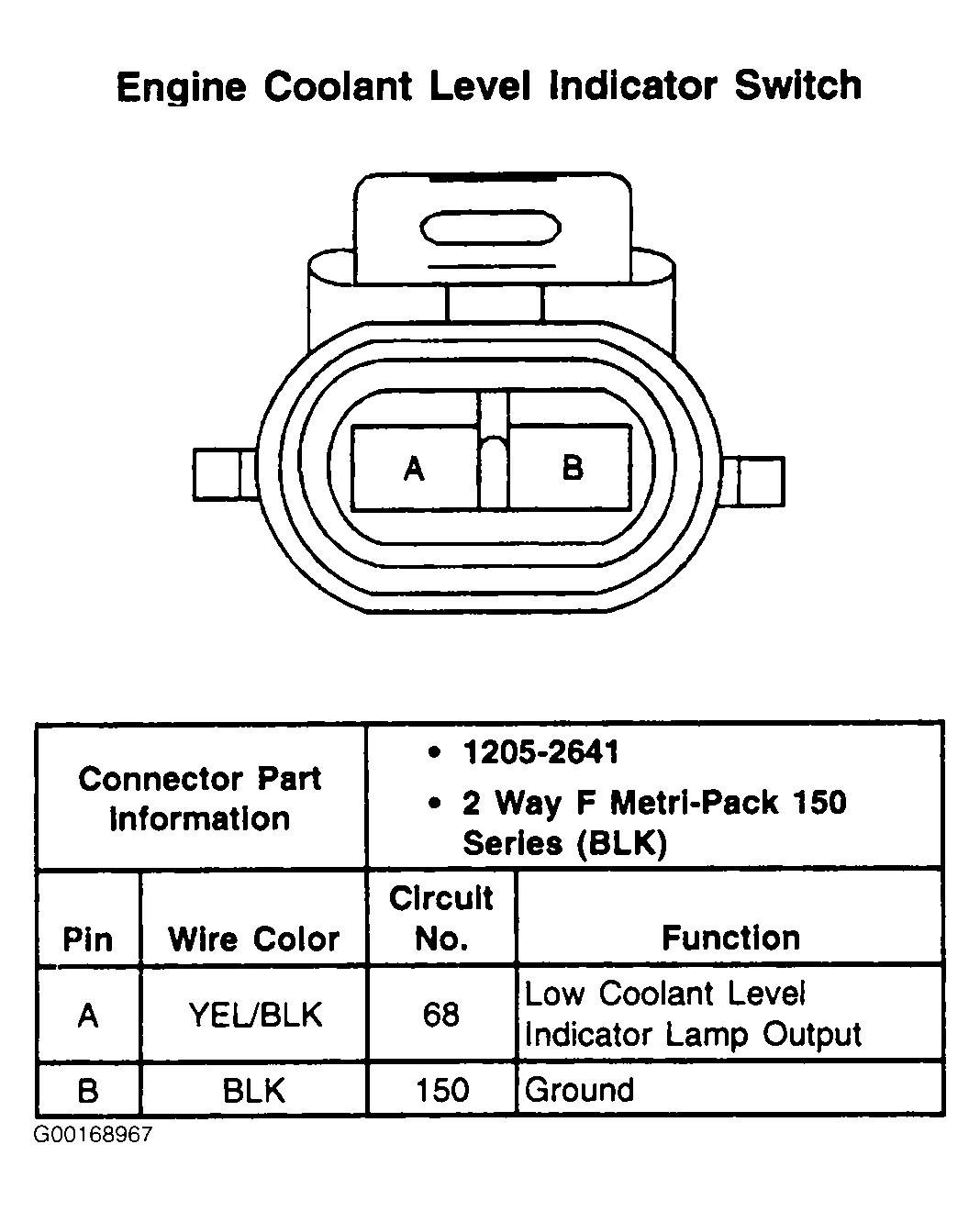

Fig 1: Engine Coolant Level Indicator Switch - 2-Pin Connector (Black)
G00168967Courtesy of GENERAL MOTORS CORP.
