Engine Oil Level Sensor

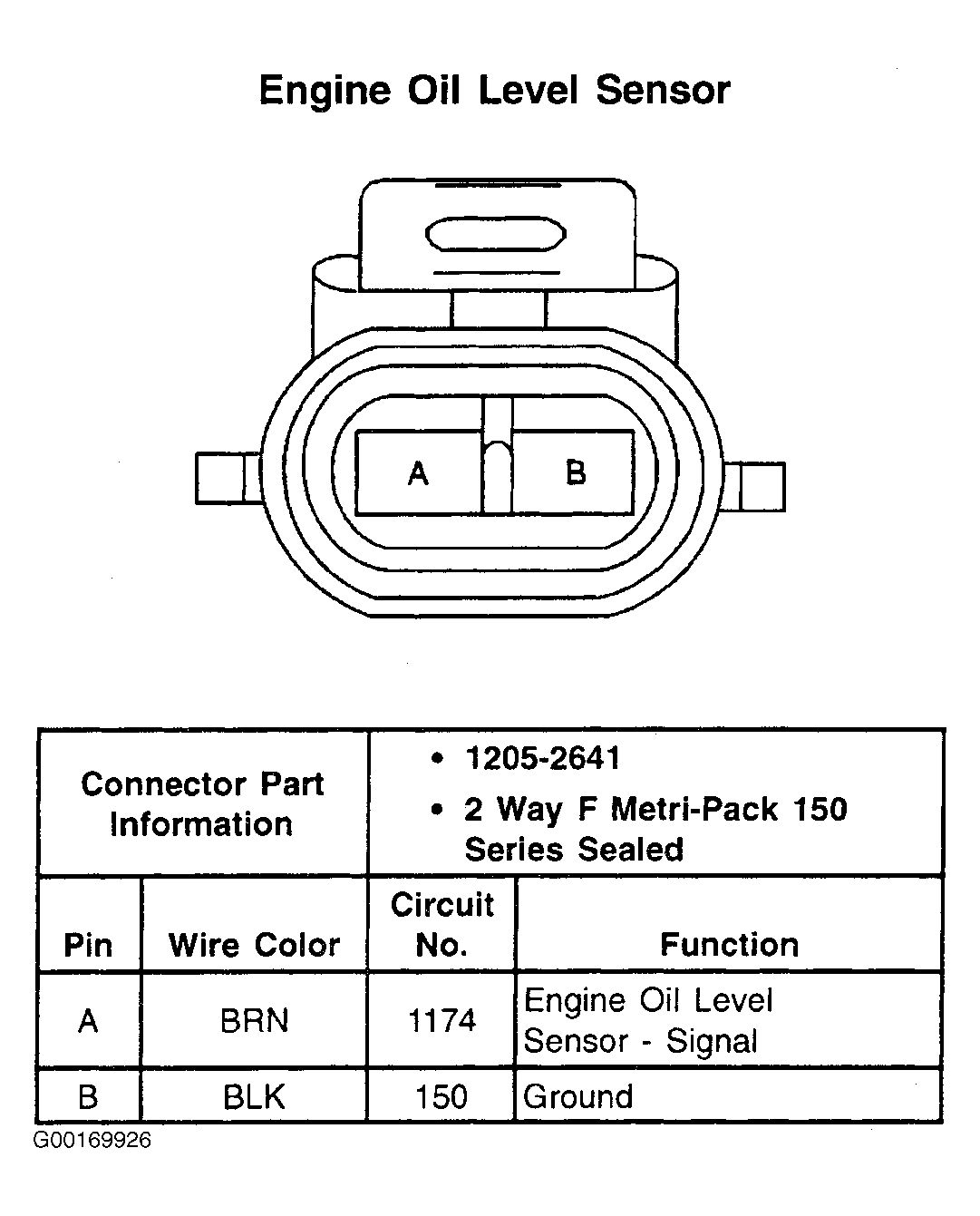

Fig 1: Engine Oil Level Sensor - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
