Engine Oil Temperature Gauge Sensor

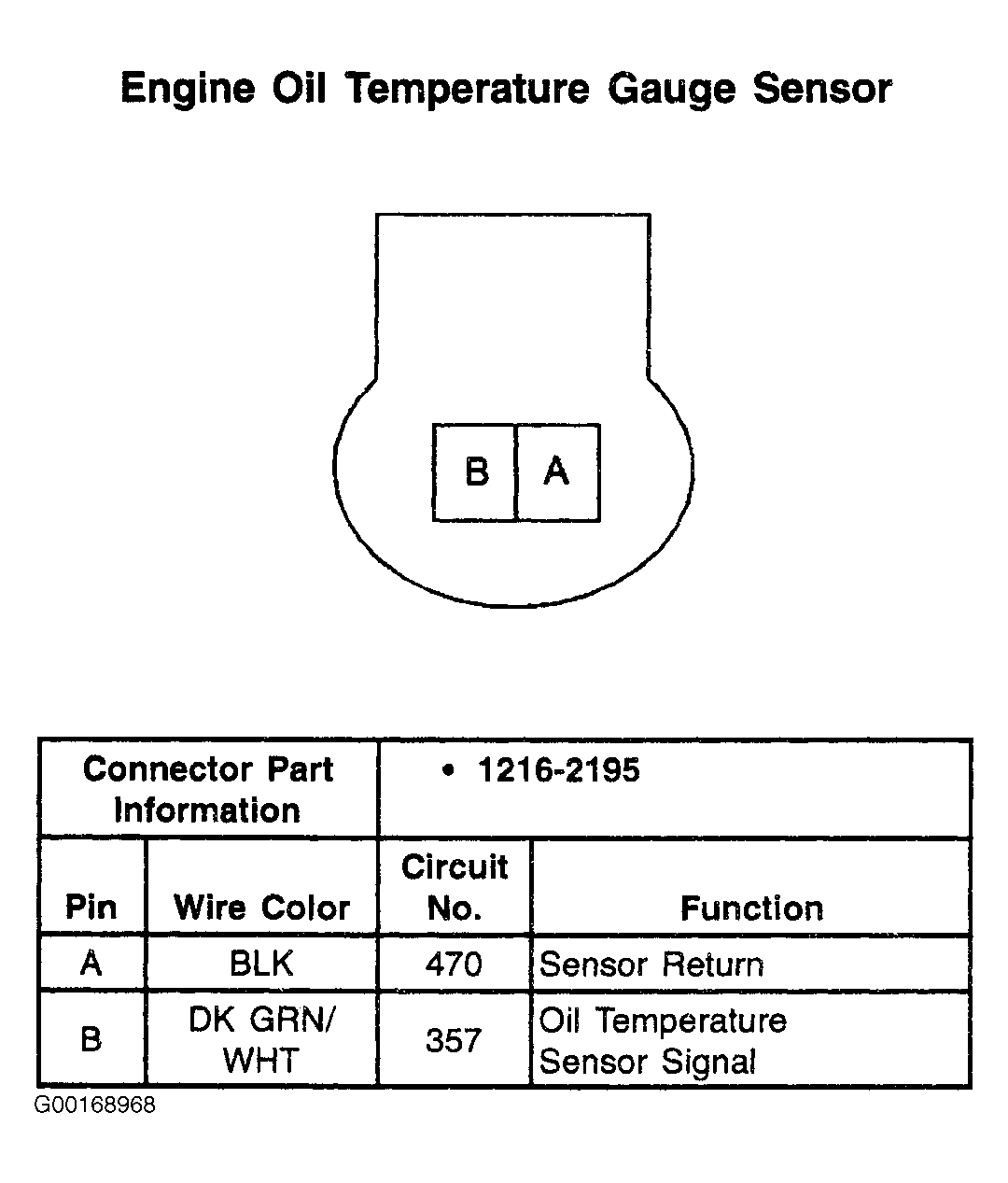

Fig 1: Engine Oil Temperature Gauge Sensor - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
