Fog Lamp Switch (Export)

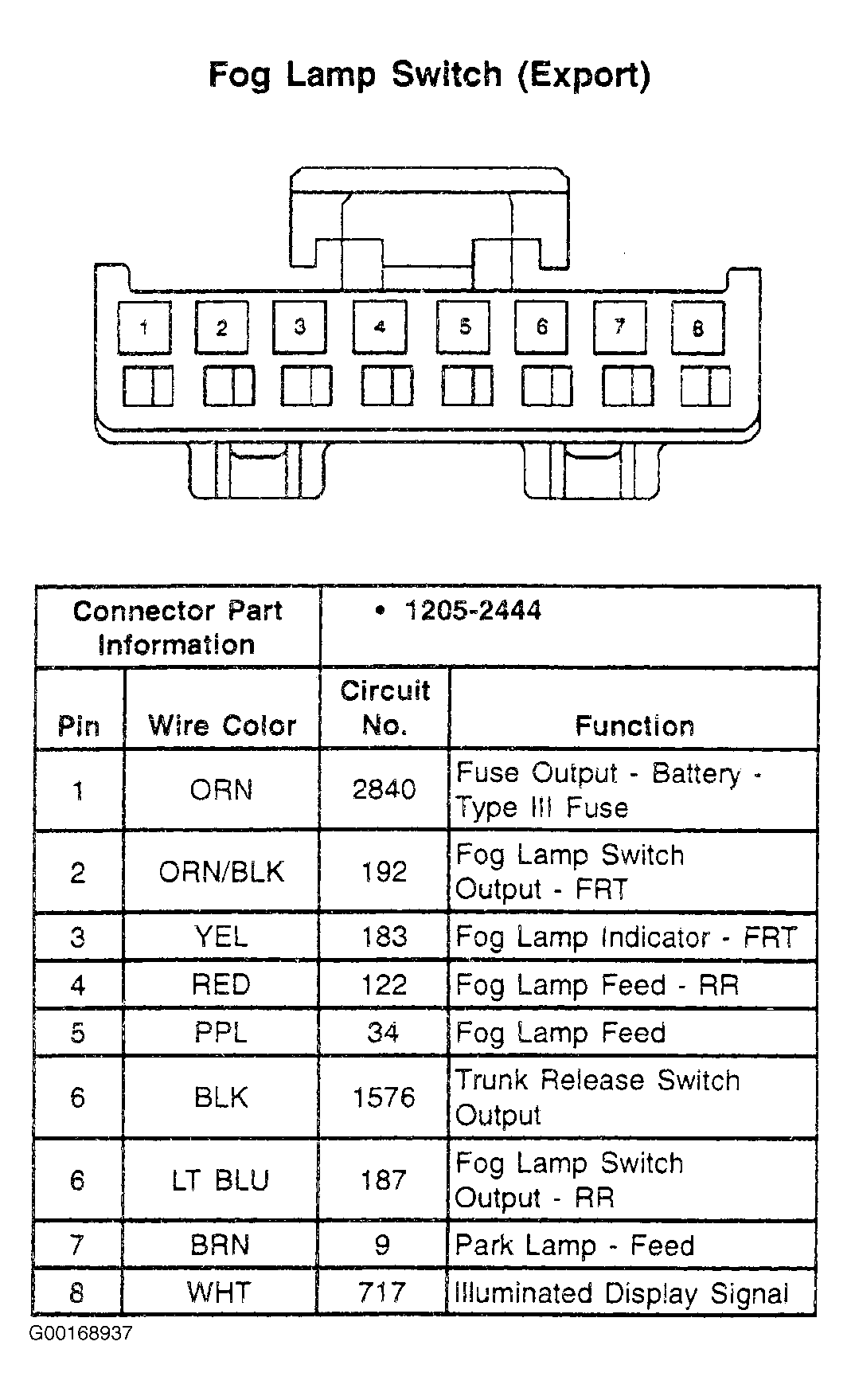

Fig 1: Fog Lamp Switch (Export) - 8-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
