Fuel Injectors #1-8

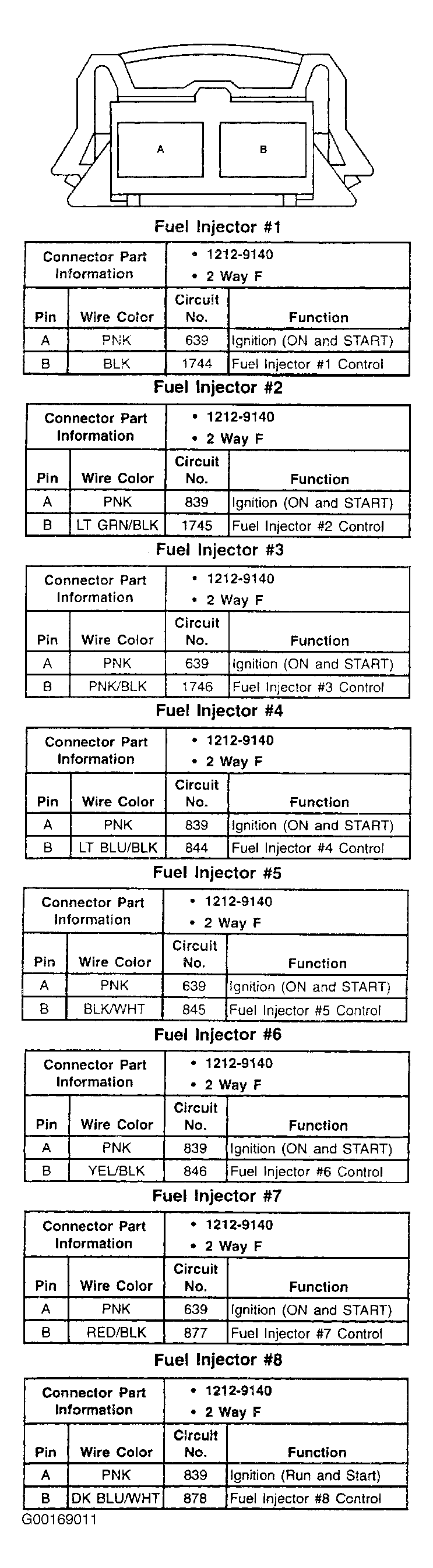

Fig 1: Fuel Injectors #1-8 - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
