Connector Terminal Identification: Generator

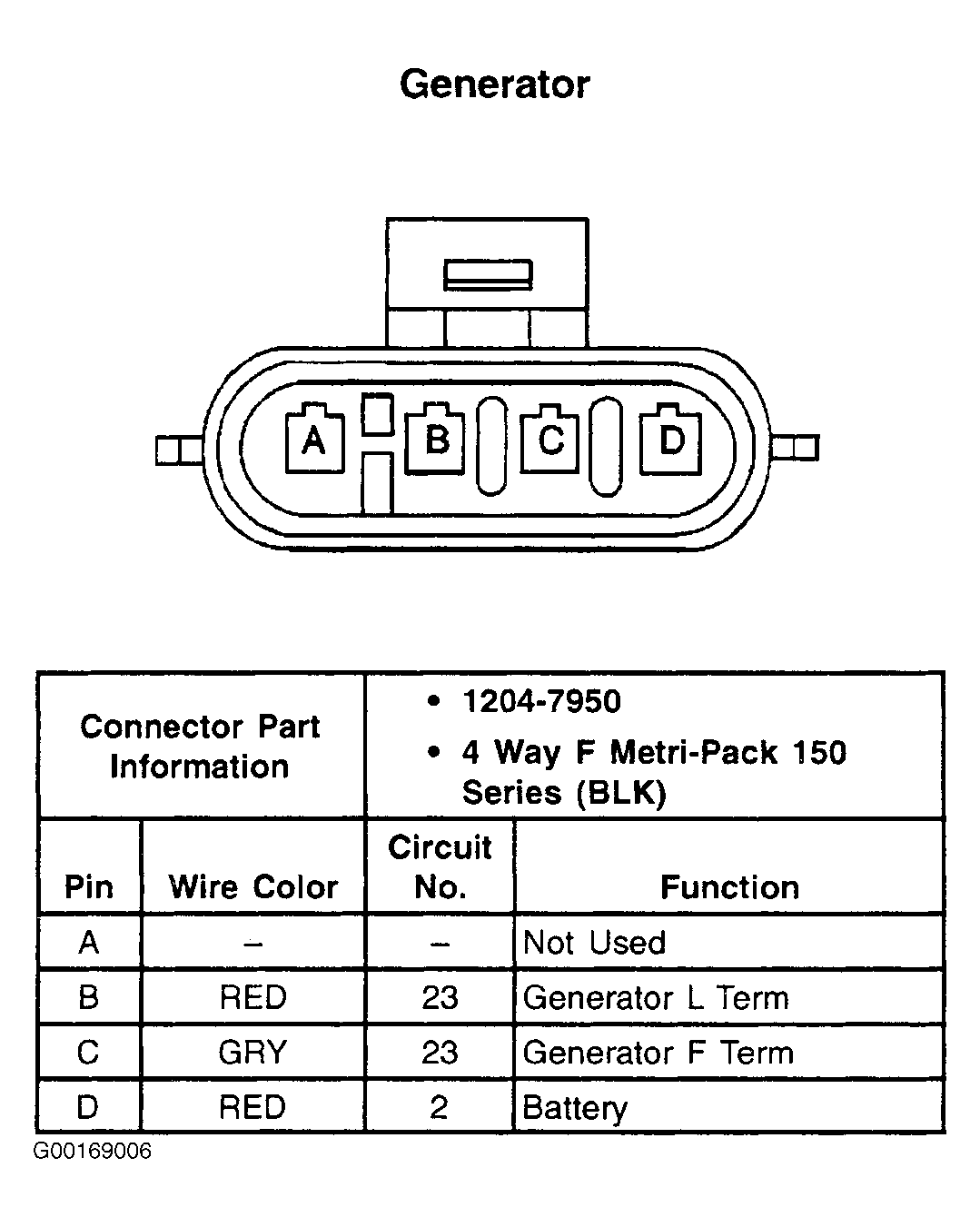

Fig 1: Generator - 4-Pin Connector (Black)
G00169006Courtesy of GENERAL MOTORS CORP.
