Connector Terminal Identification: Horn

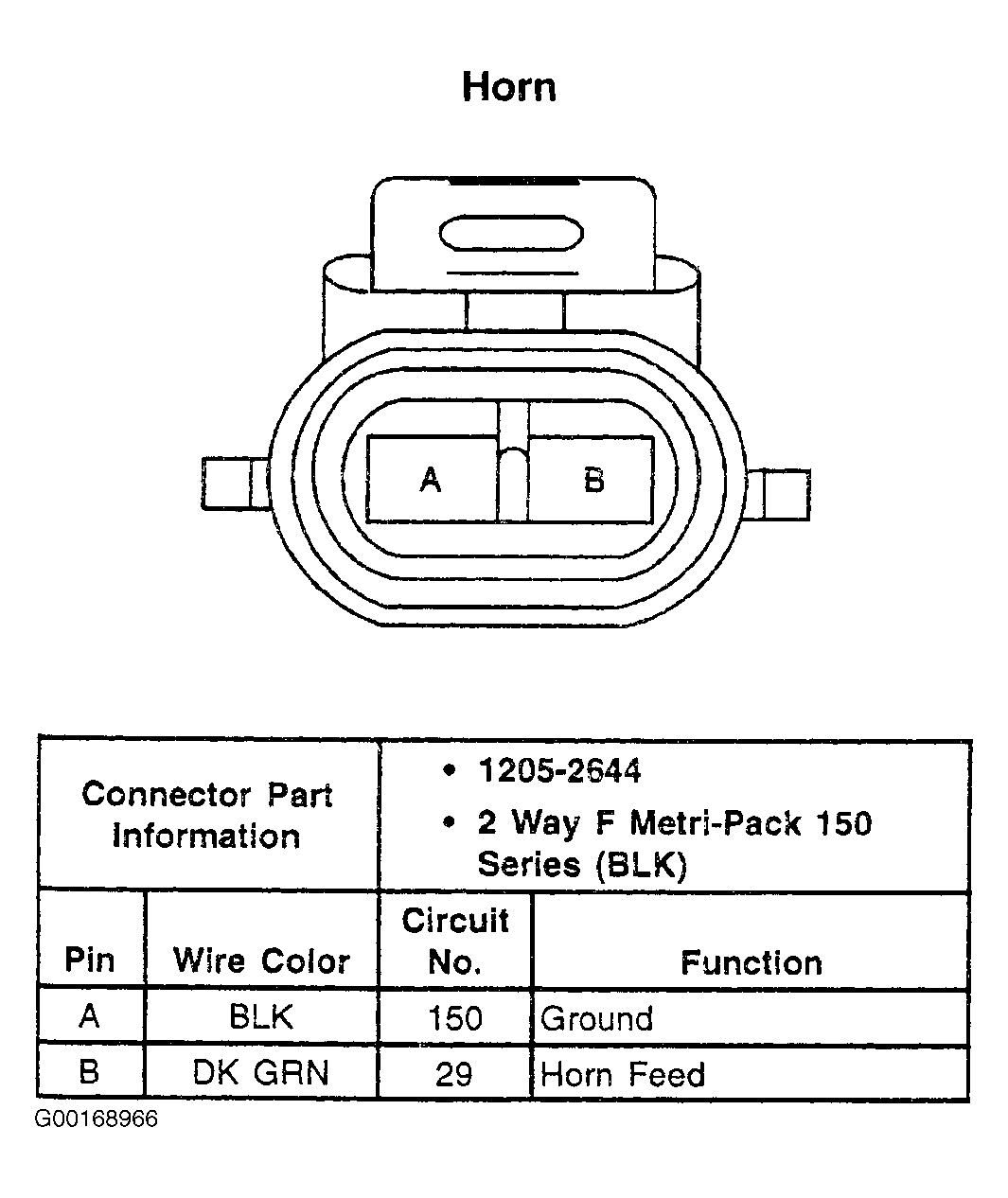

Fig 1: Horn - 2-Pin Connector (Black)
G00168966Courtesy of GENERAL MOTORS CORP.
