Inflatable Restraint Front End Discriminating Sensor

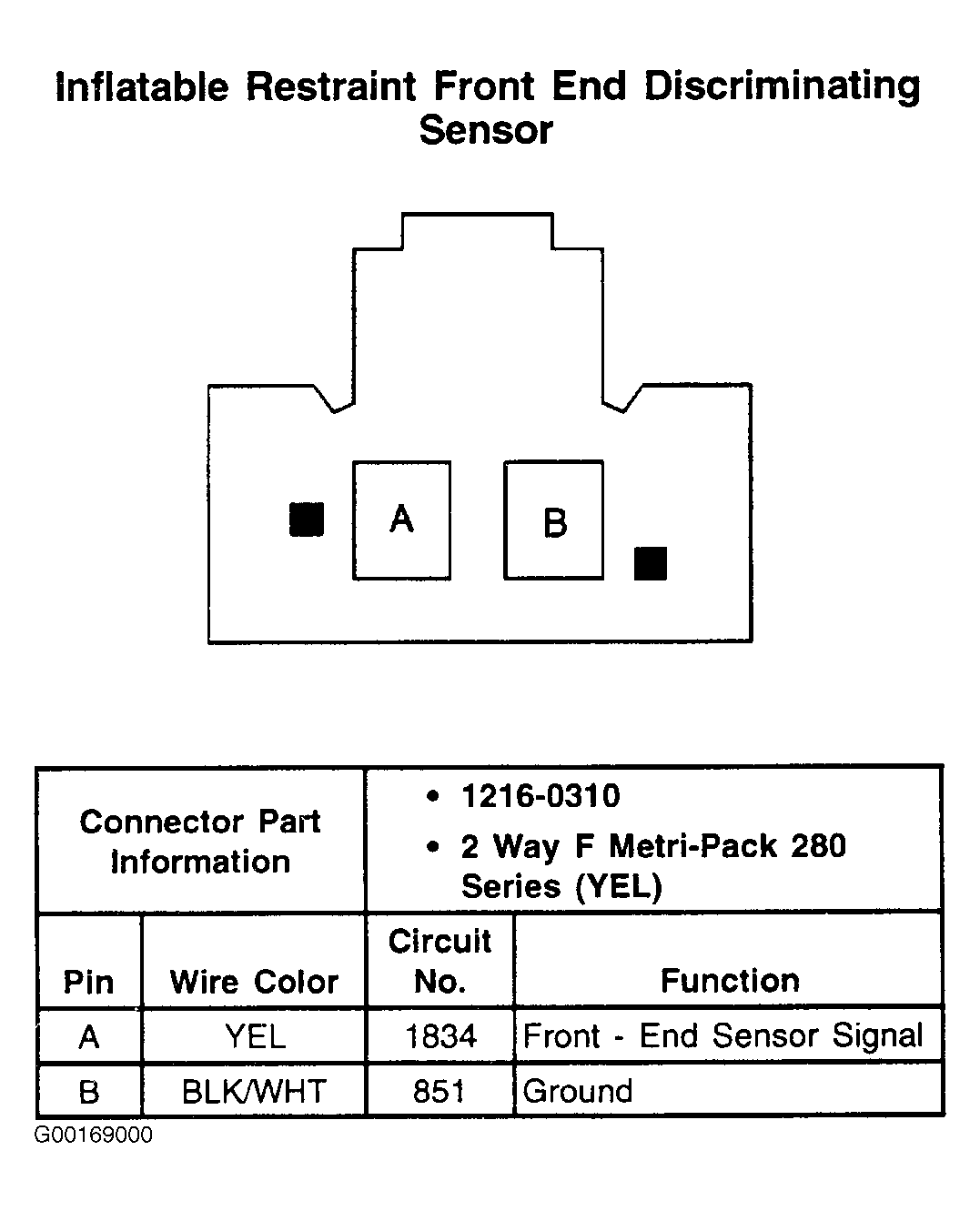

Fig 1: Inflatable Restraint Front End Discriminating Sensor - 2-Pin Connector (Yellow)
G00169000Courtesy of GENERAL MOTORS CORP.
