Inflatable Restraint Sensing & Diagnostic Module

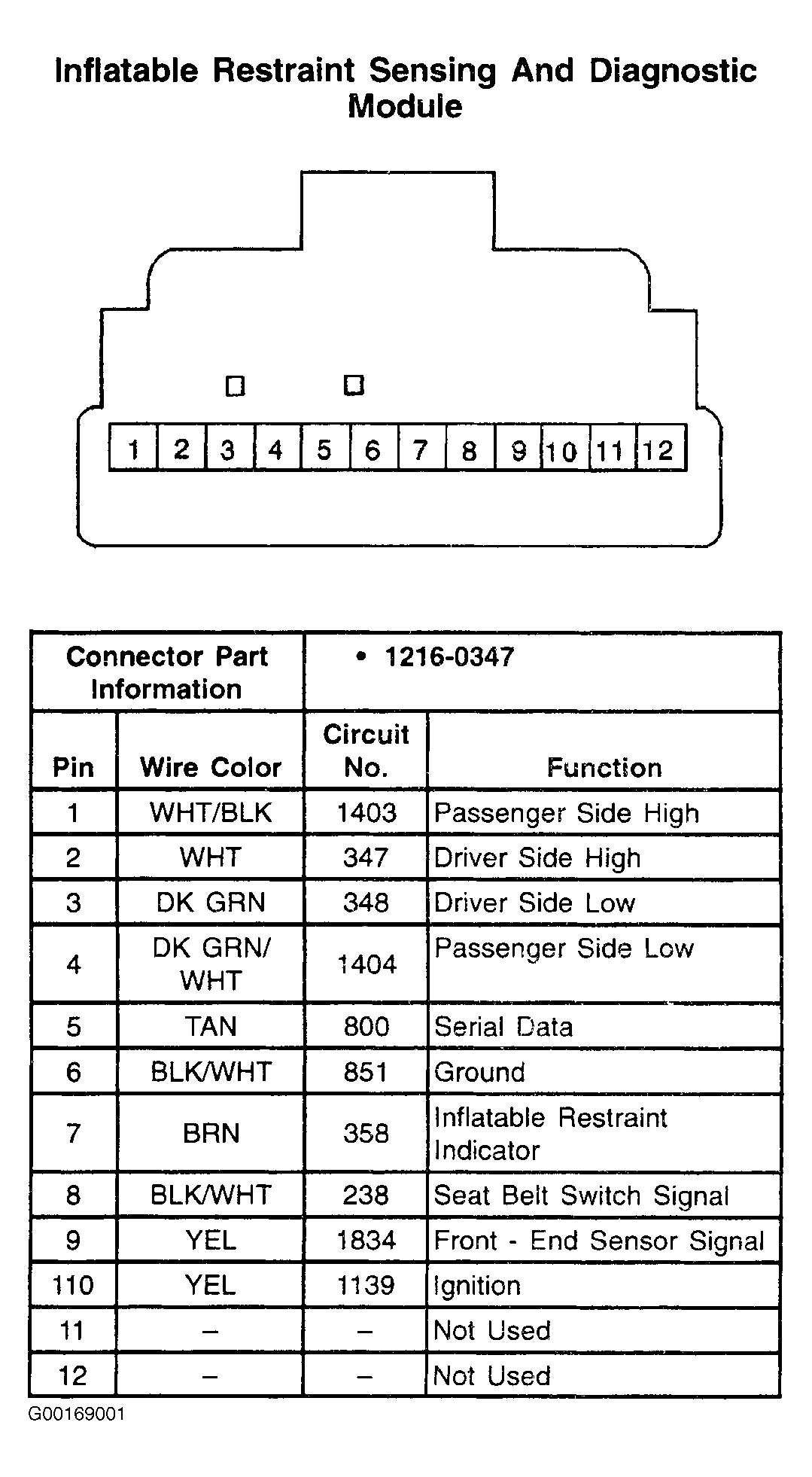

Fig 1: Inflatable Restraint Sensing & Diagnostic Module - 12-Pin Connector
G00169001Courtesy of GENERAL MOTORS CORP.
