Inside Air Temperature Sensor

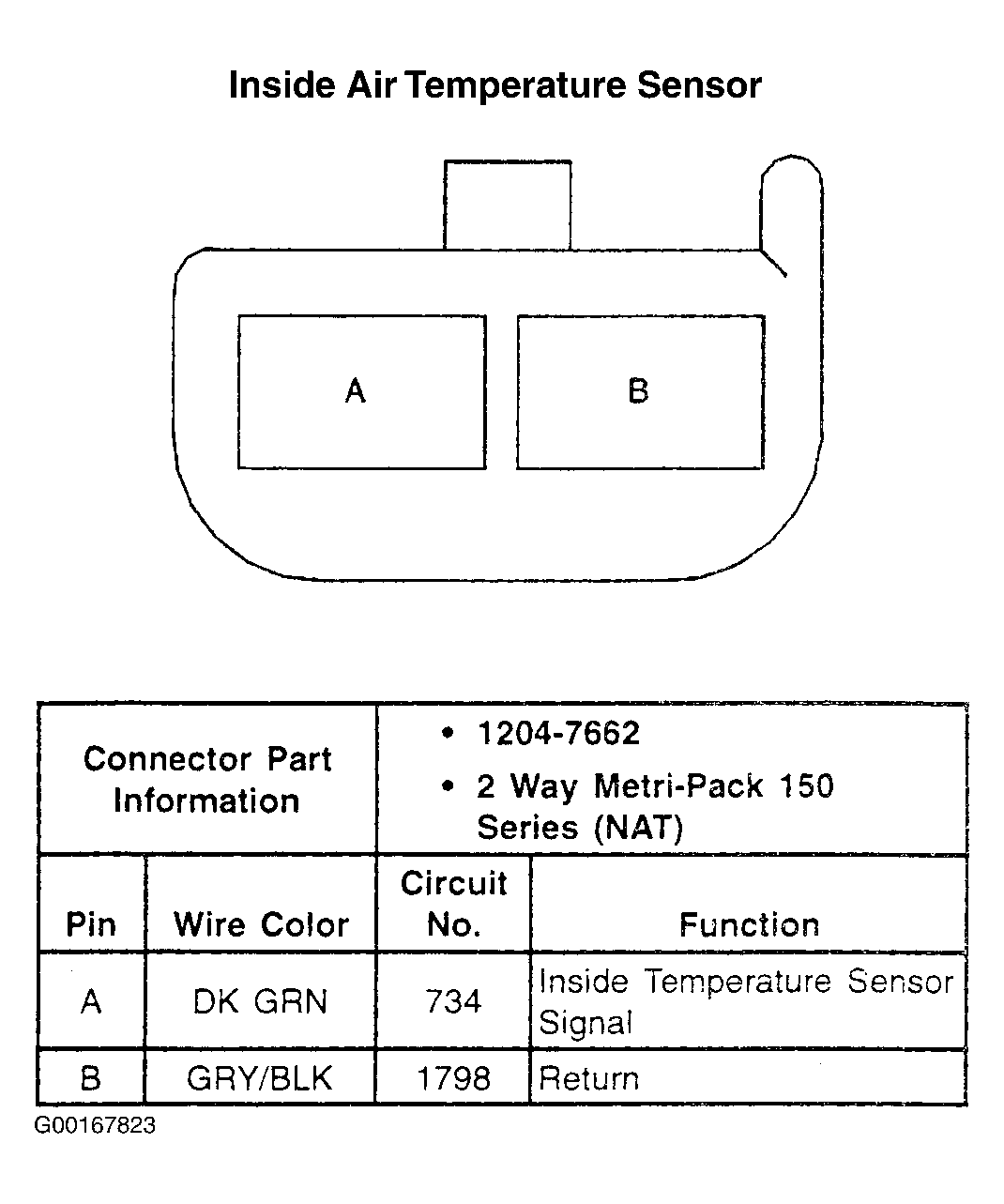

Fig 1: Inside Air Temperature Sensor - 2-Pin Connector (Natural)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
