Knock Sensor (KS)

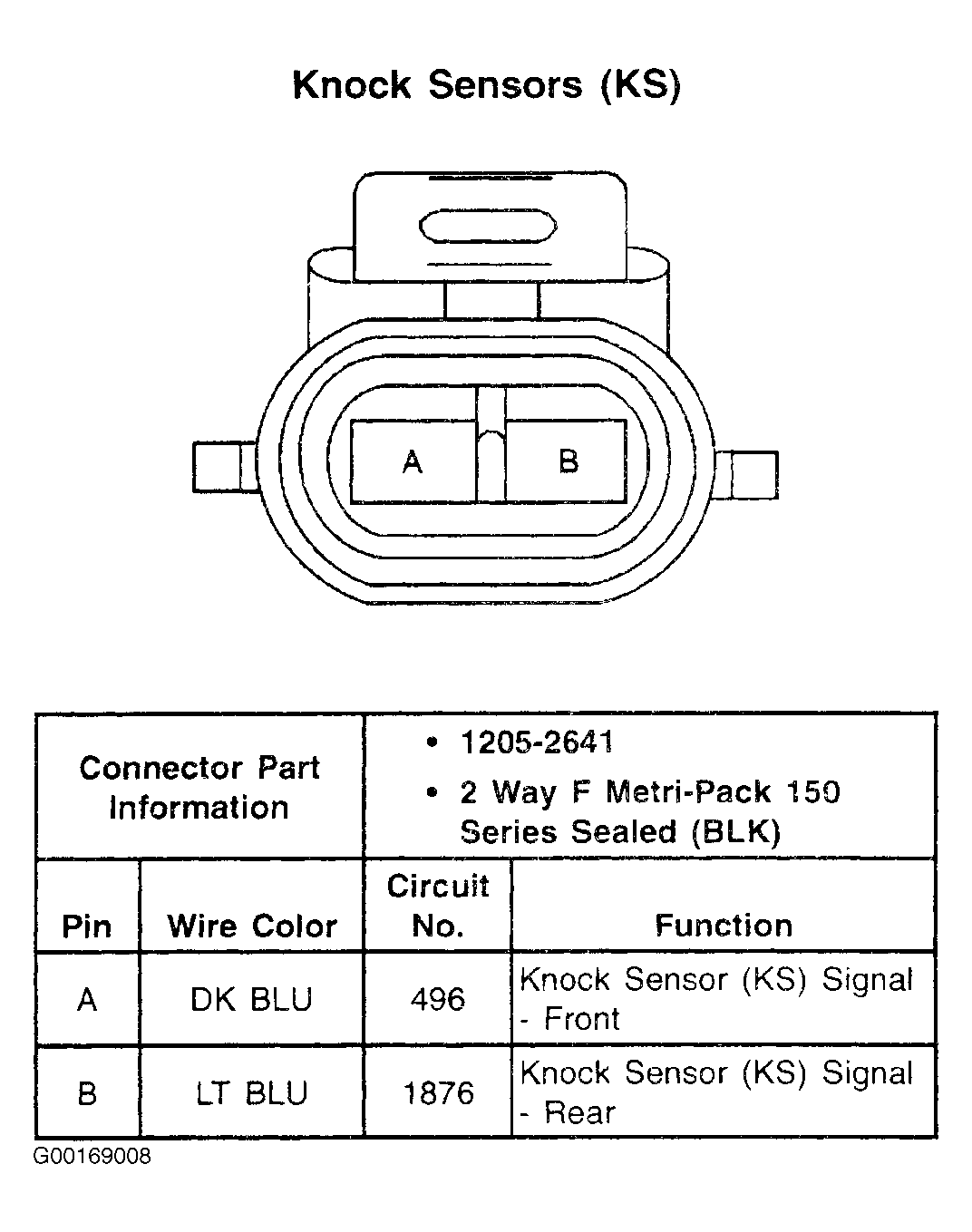

Fig 1: Knock Sensor (KS) - 2-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
