Park/Neutral Position Switch C2

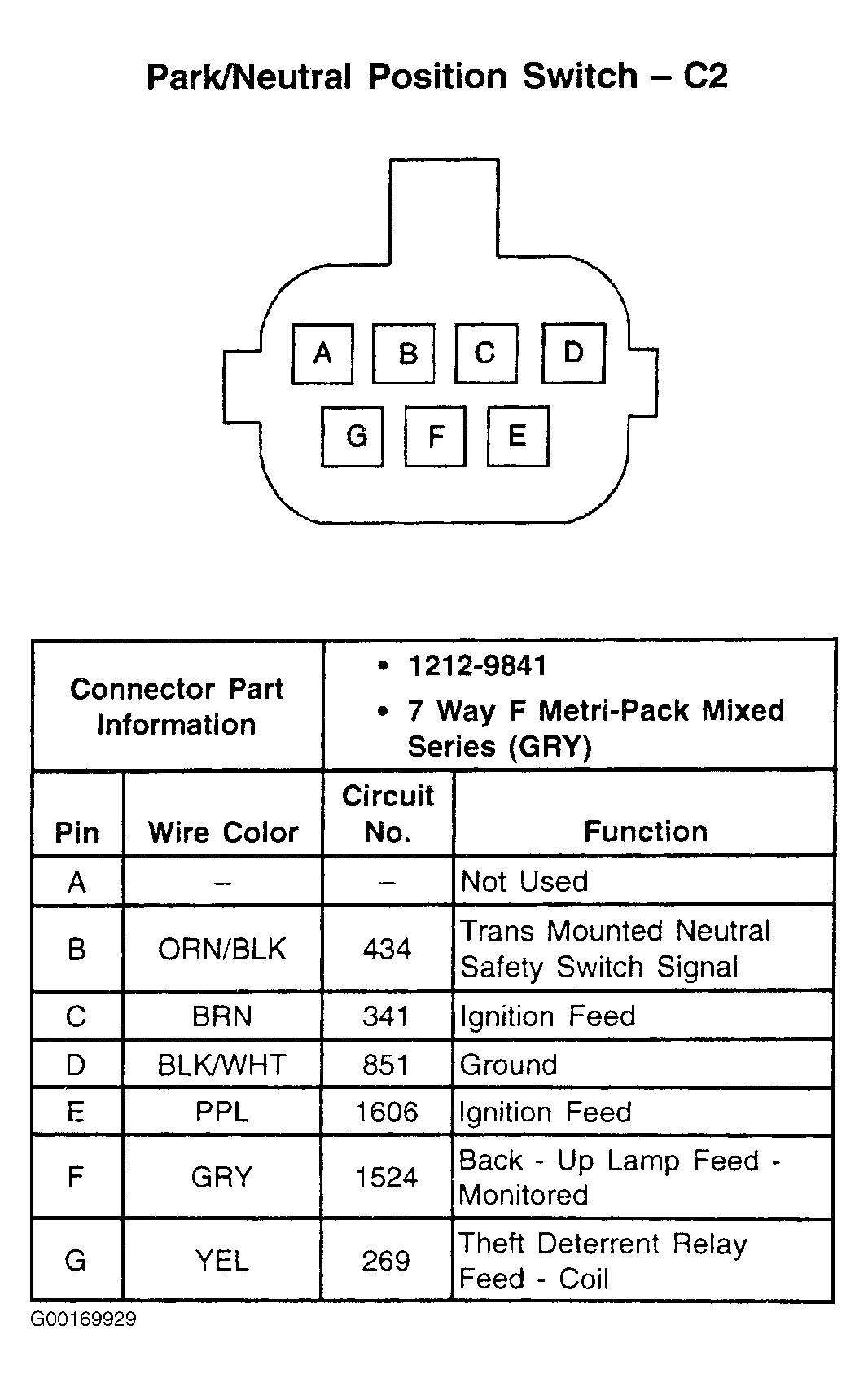

Fig 1: Park/Neutral Position Switch C2 - 7-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
