Radio Antenna Module

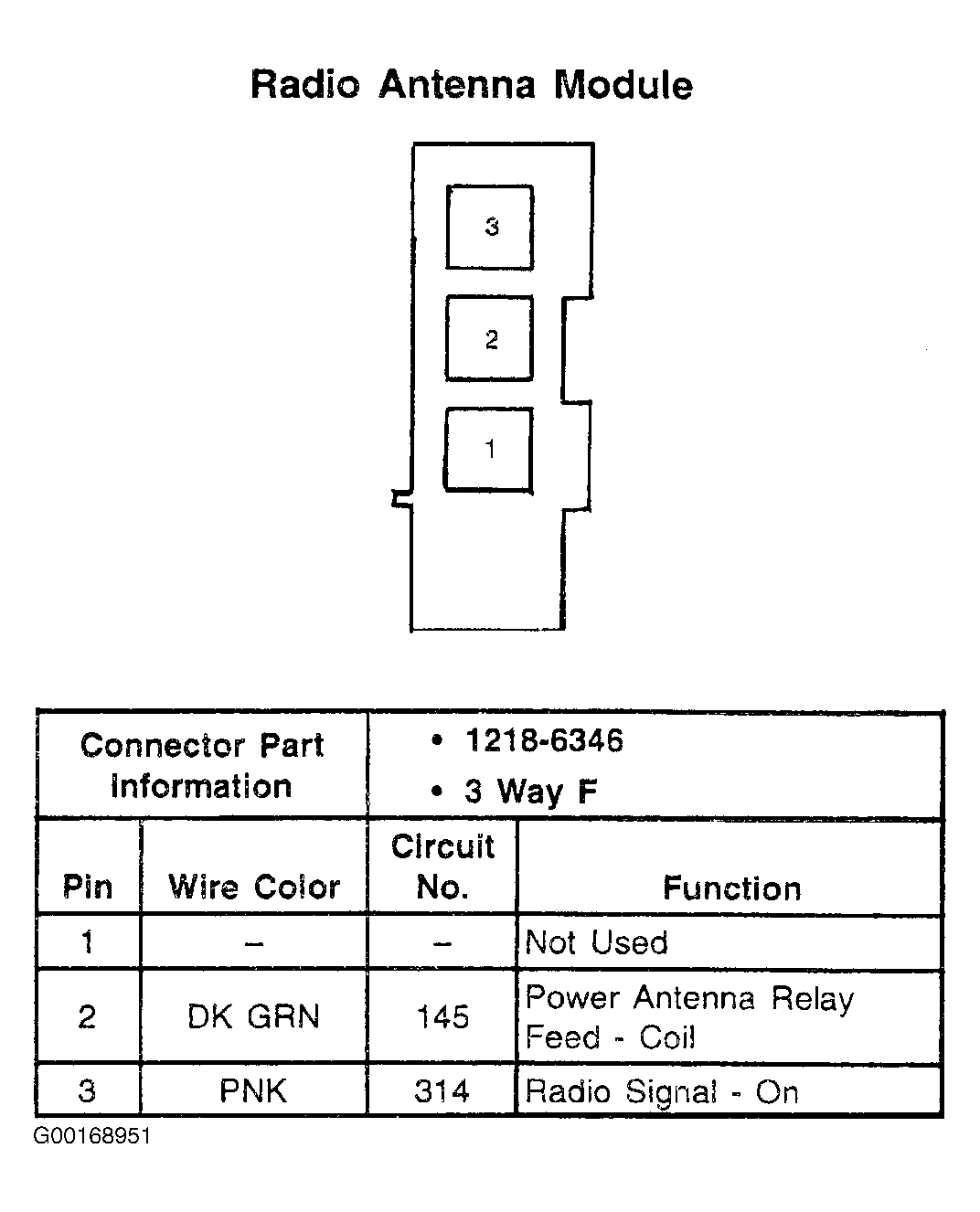

Fig 1: Radio Antenna Module - 3-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
