Home
>>
Chevrolet
>>
1997
>>
Corvette Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification
>>
STOPLAMP Switch
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
STOPLAMP Switch

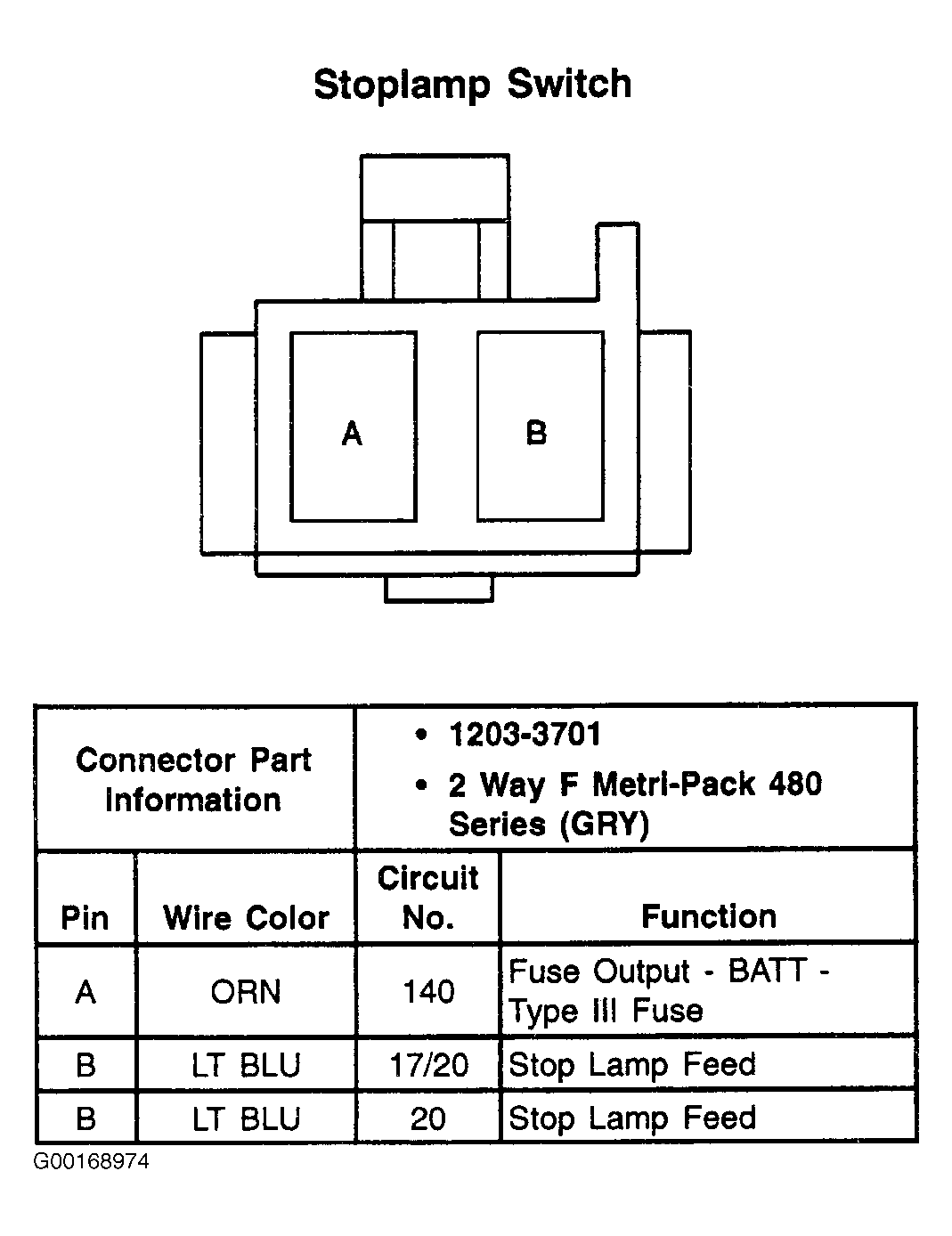

Fig 1: Stoplamp Switch - 2-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
