Sunshade Mirror Lamp (RH)

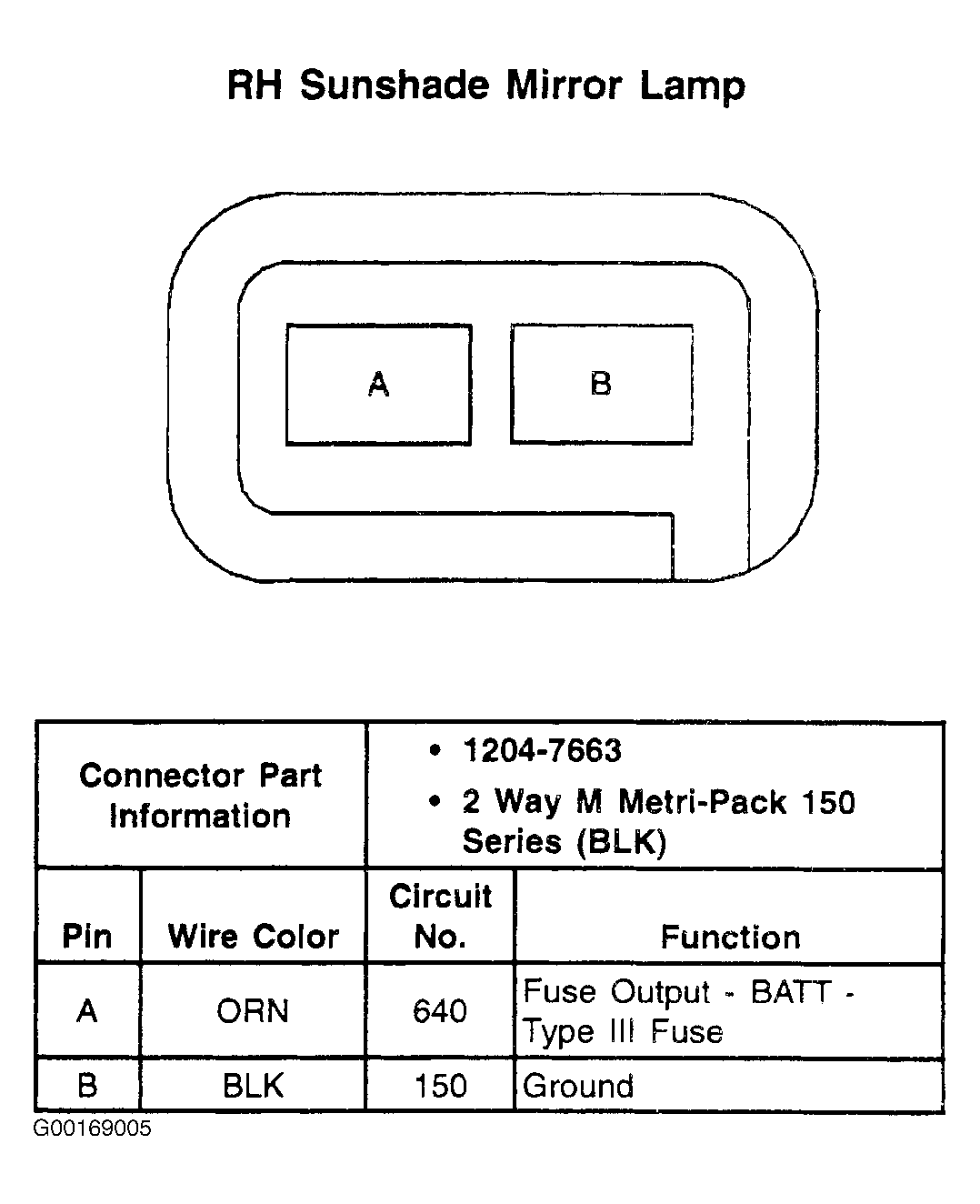

Fig 1: Sunshade Mirror Lamp (RH) - 2-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
