Theft Deterrent Relay

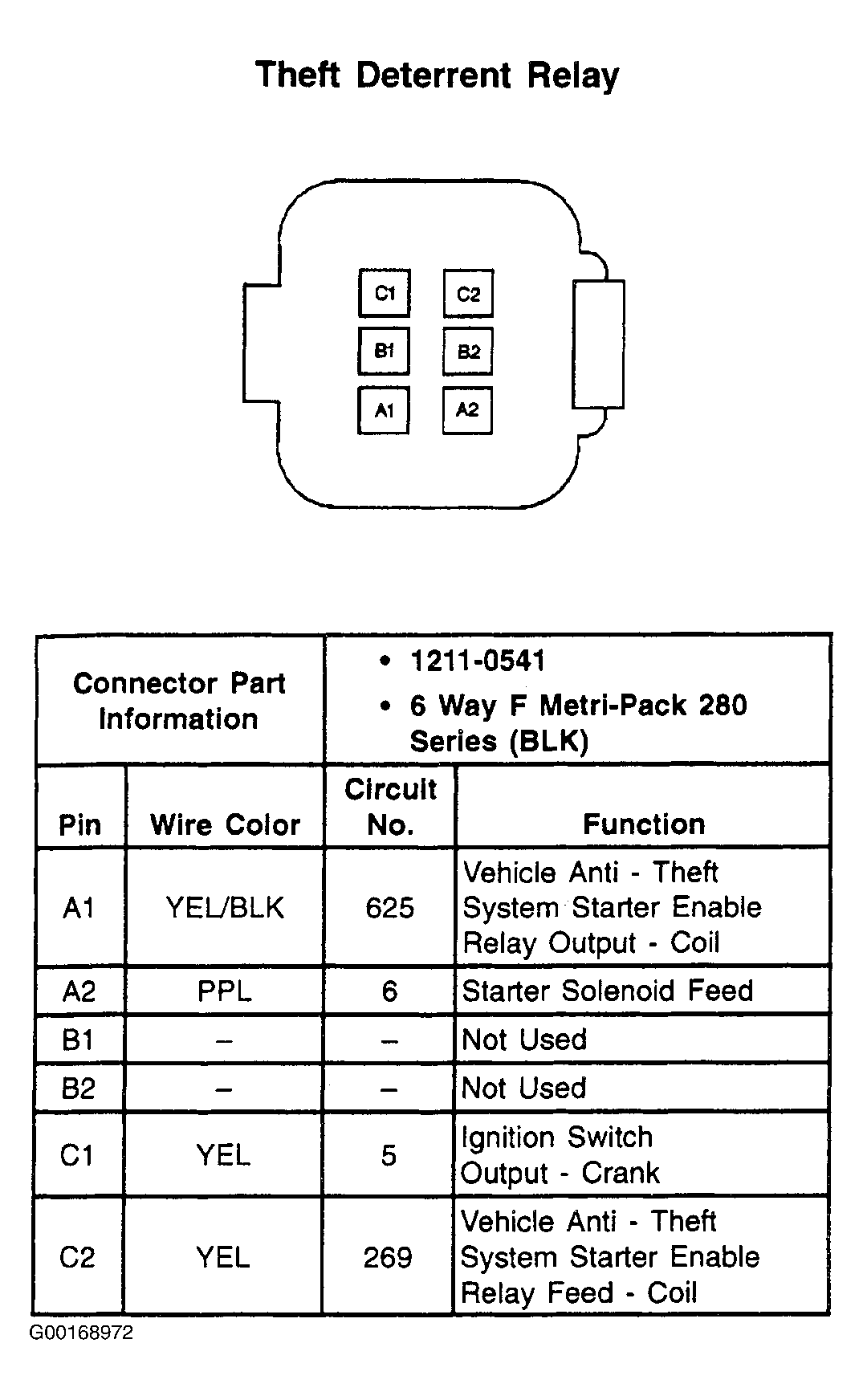

Fig 1: Theft Deterrent Relay - 6-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
