Windshield Wiper Motor

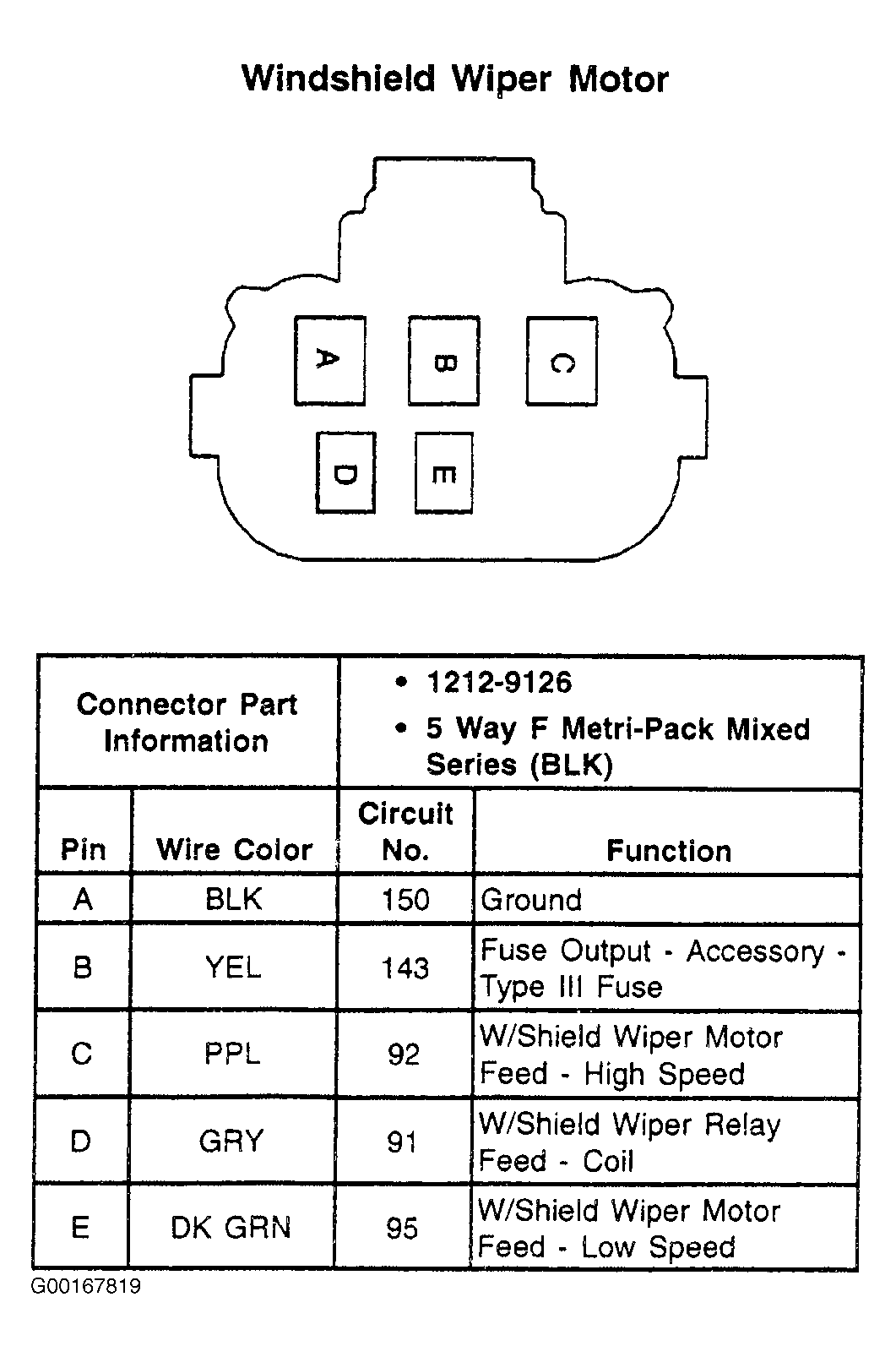

Fig 1: Windshield Wiper Motor - 5-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
