Center High Mounted Stop Lamp

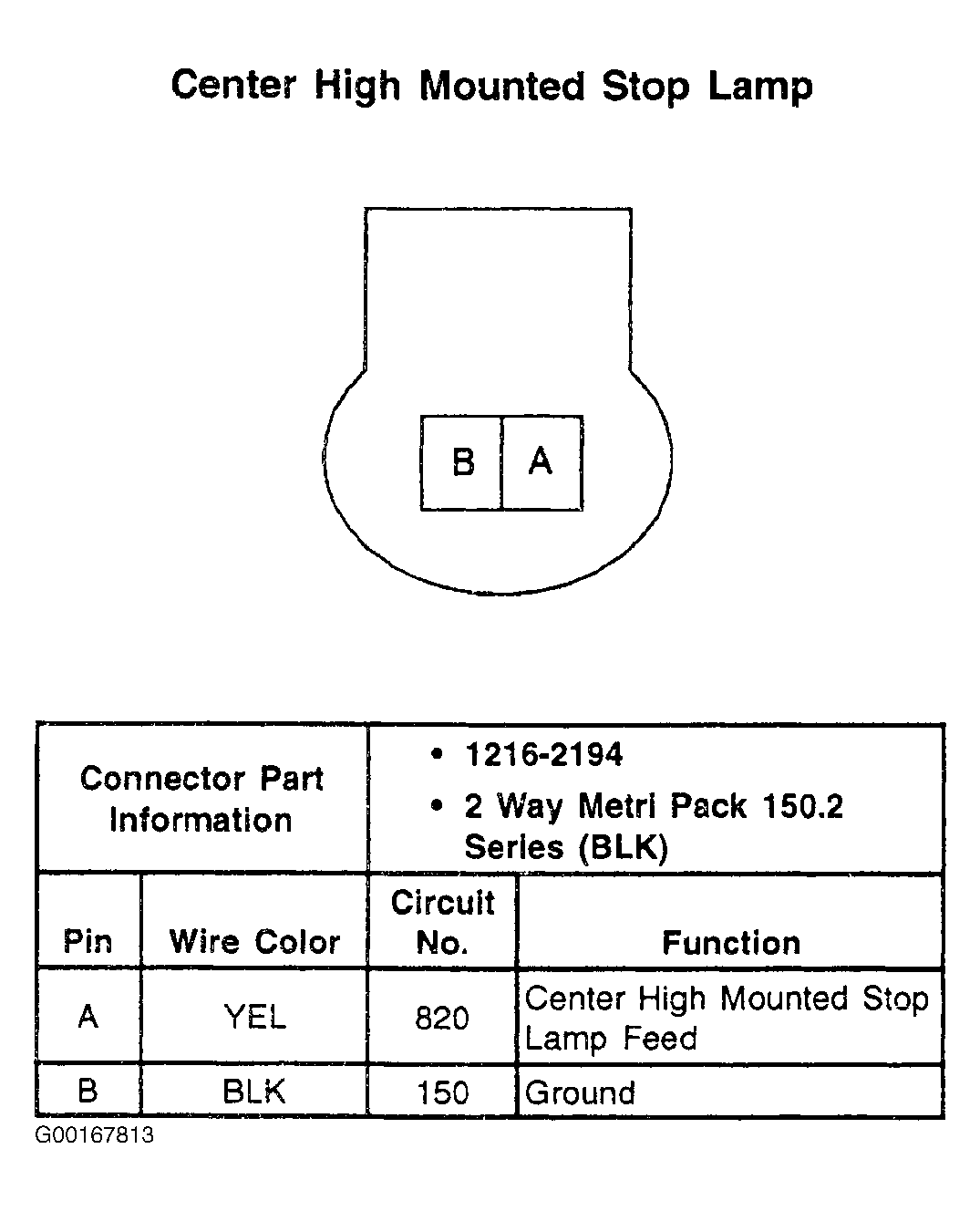

Fig 1: Center High Mounted Stop Lamp - 2-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
