Century & Regal

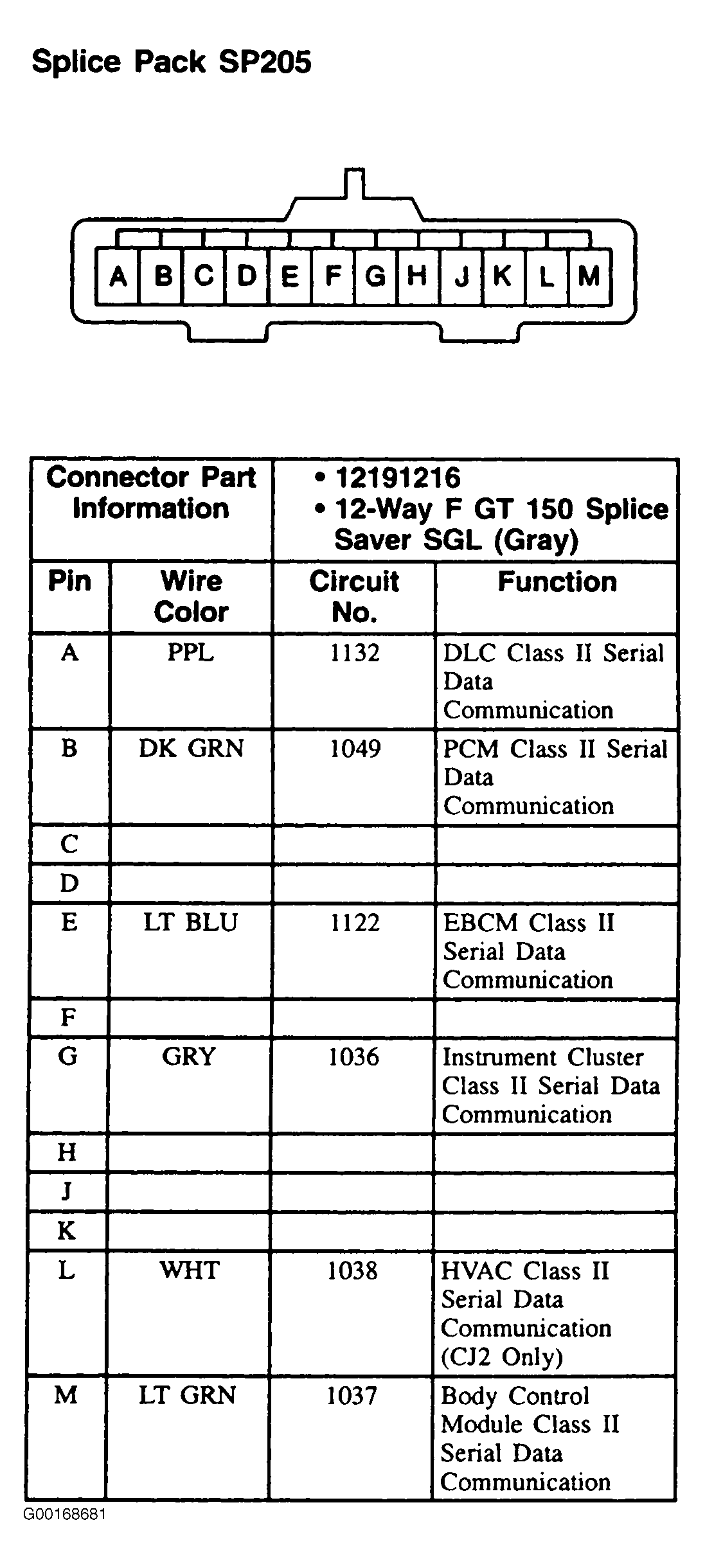

Fig 1: Splice Pack SP205 (Century & Regal) - 12-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
