Auto Level Control (ALC) Inflator Relay

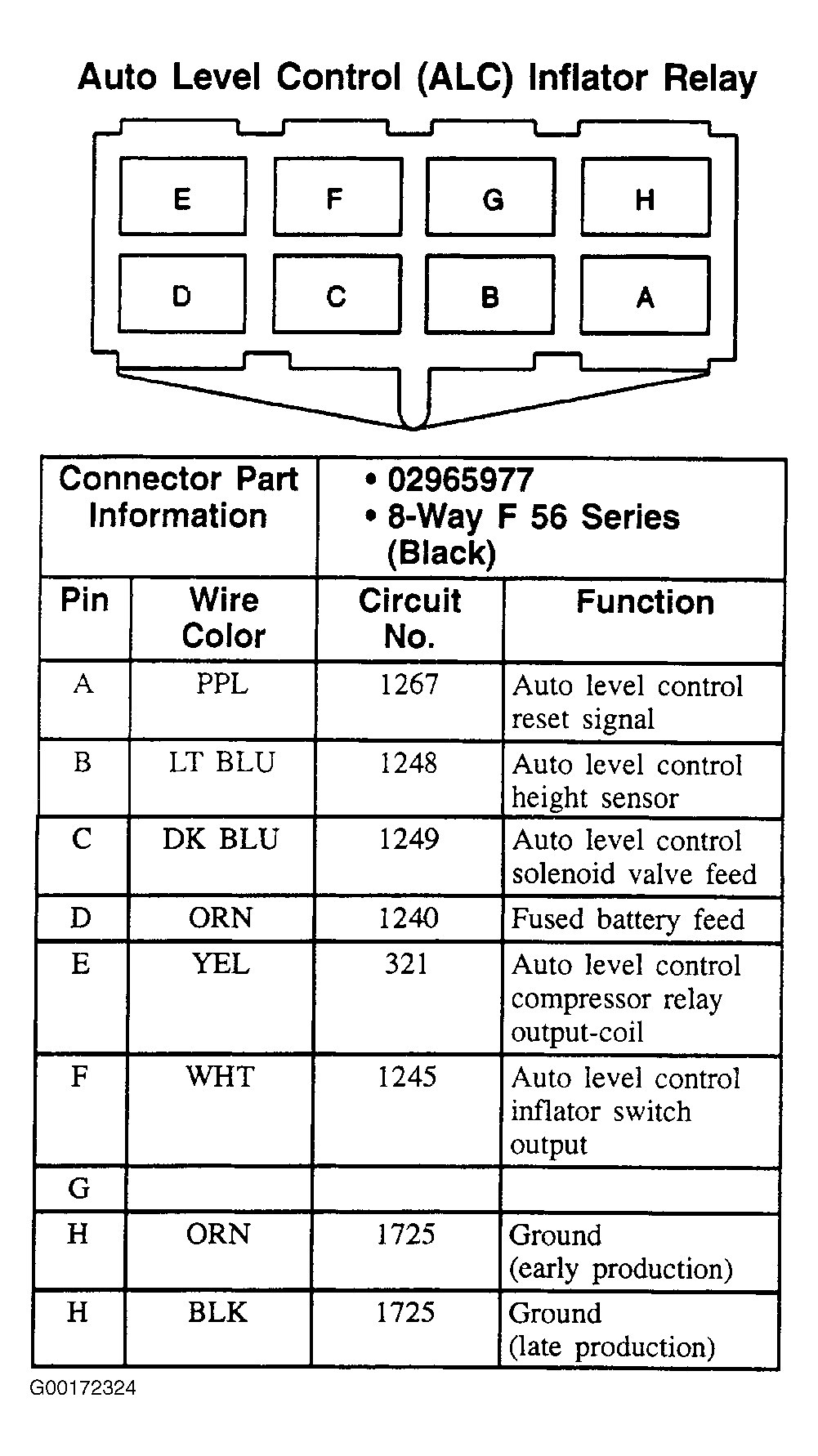

Fig 1: Auto Level Control (ALC) Inflator Relay - 8-Pin Connector (Black)
G00172324Courtesy of GENERAL MOTORS CORP.
