Blower Motor Resistor

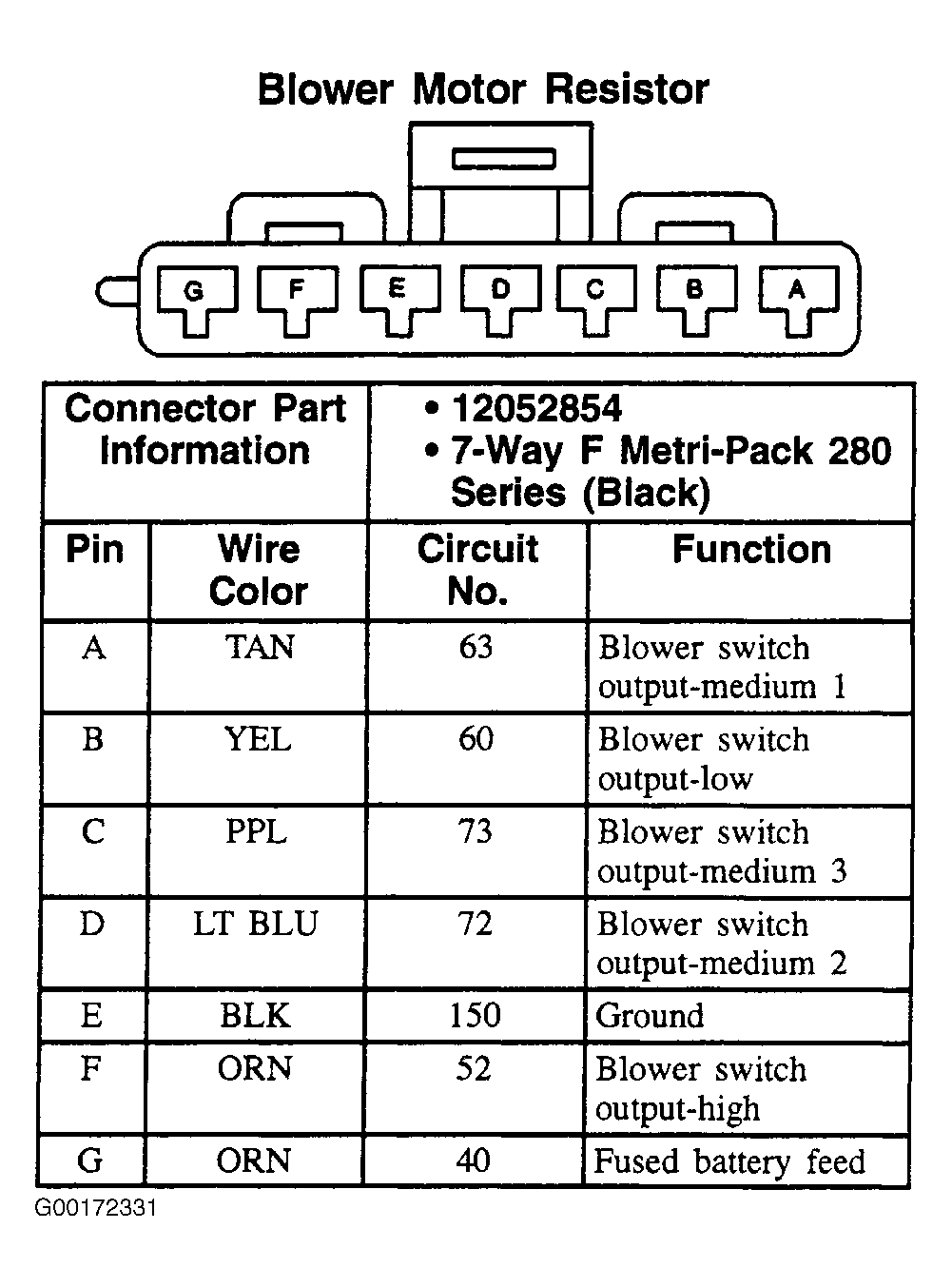

Fig 1: Blower Motor Resistor - 7-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
