Brake Modulator

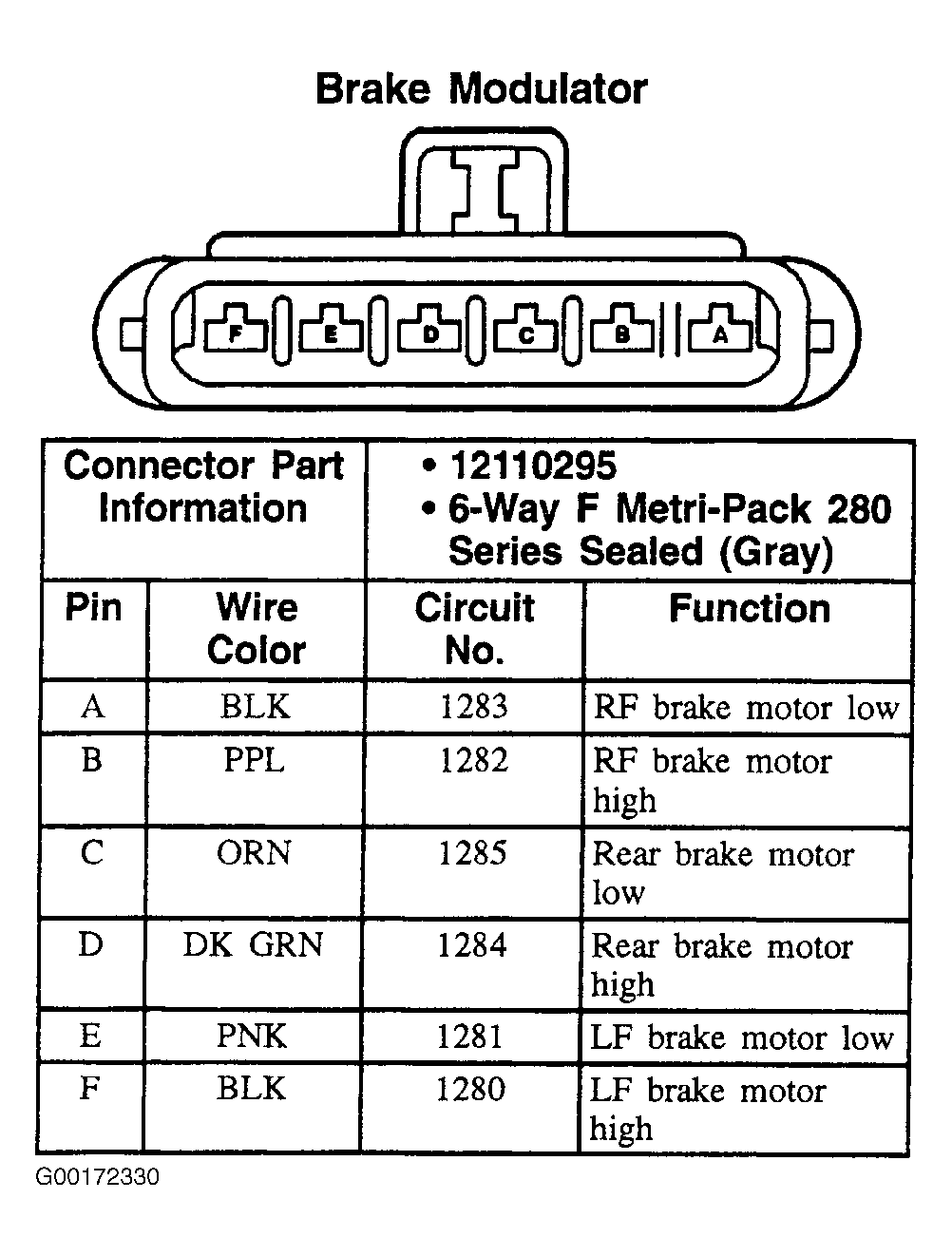

Fig 1: Brake Modulator - 6-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
