Connectors C101 To C407: C111

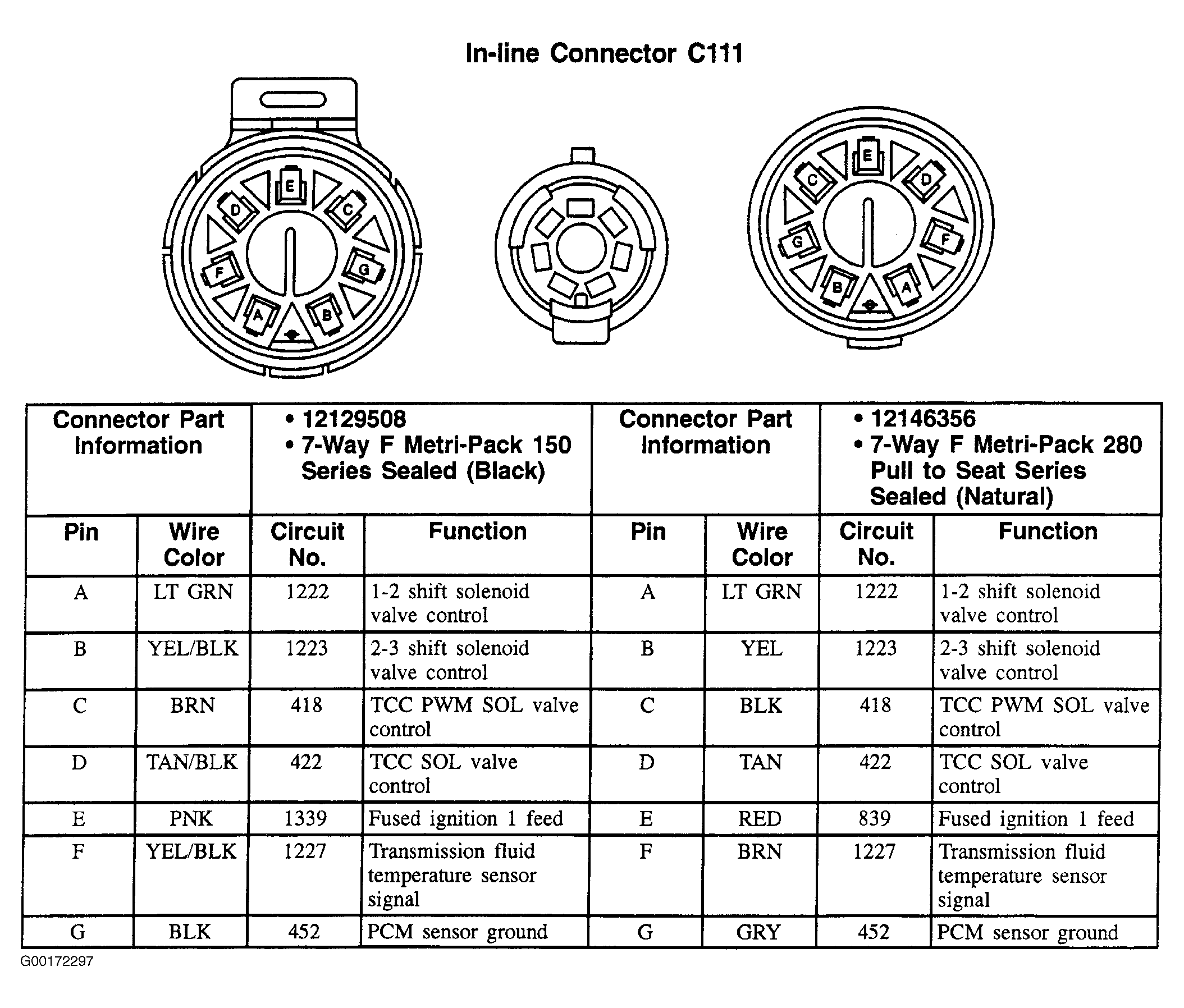

Fig 1: C111 - 7-Pin Connector (Black/Natural)

G00172297

Courtesy of GENERAL MOTORS CORP.
