Connectors C101 To C407: C401

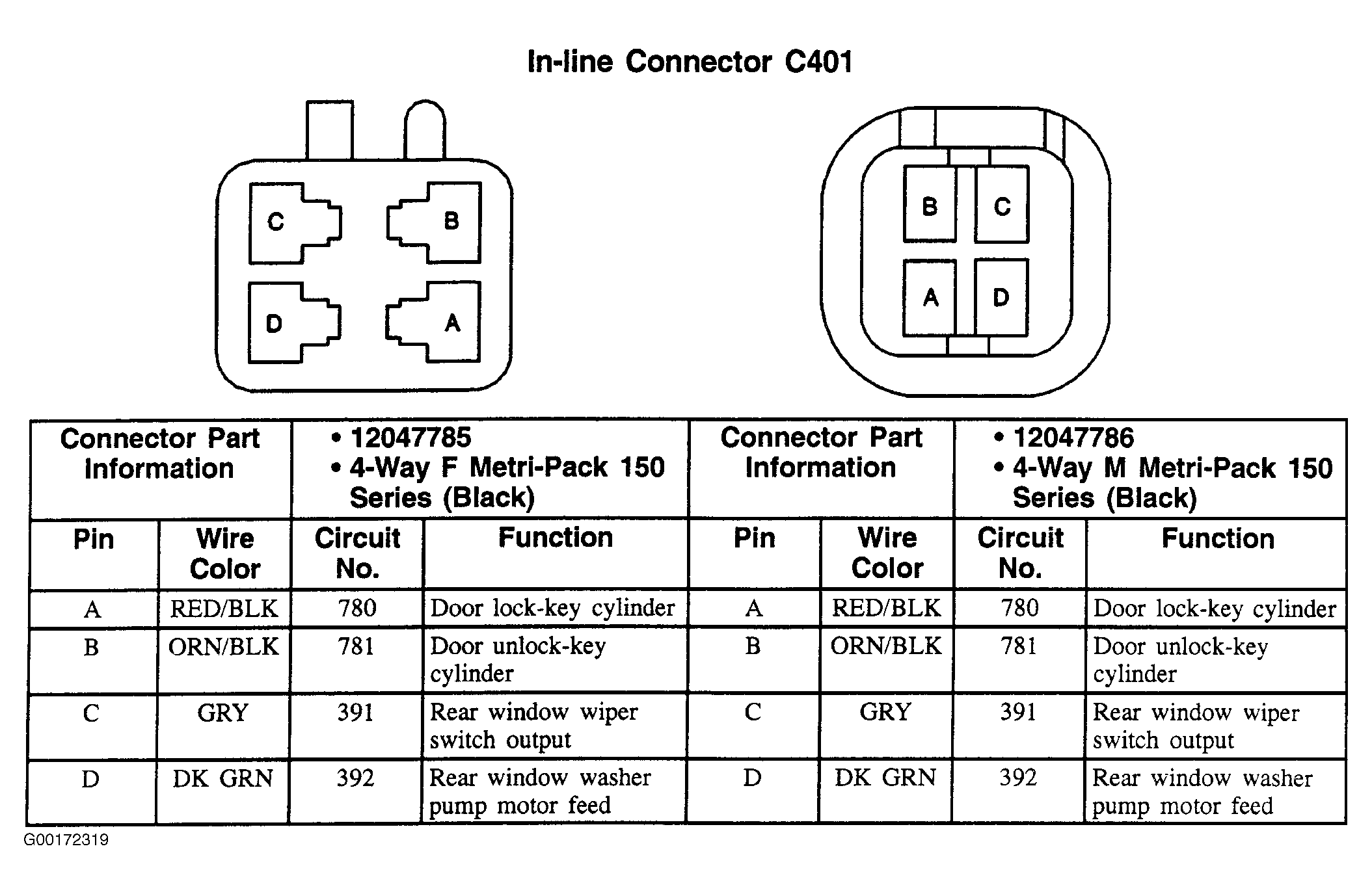

Fig 1: C401 - 4-Pin Connector (Black)

G00172319

Courtesy of GENERAL MOTORS CORP.
