Connectors C101 To C407: C405

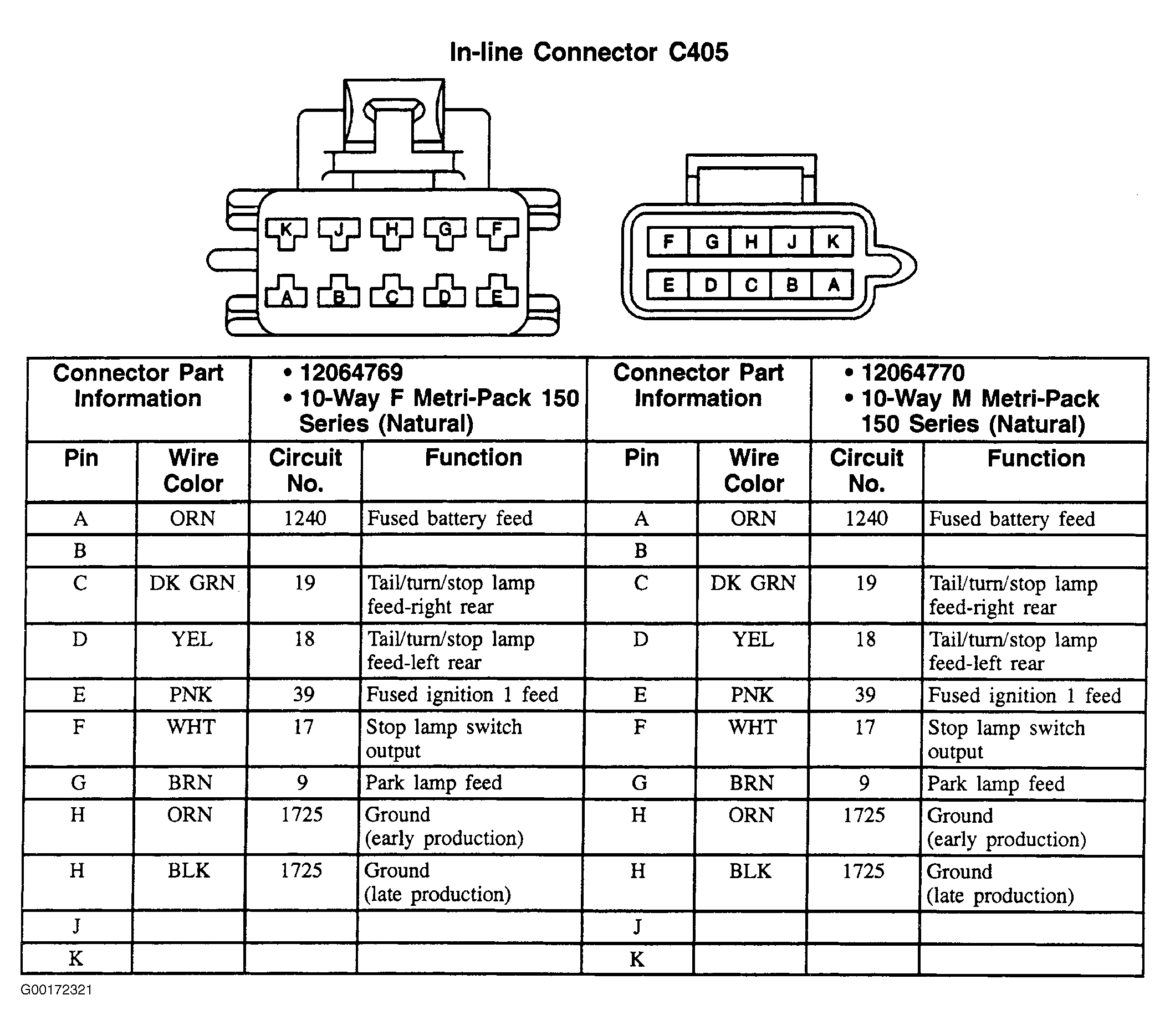

Fig 1: C405 - 10-Pin Connector (Natural)

G00172321

Courtesy of GENERAL MOTORS CORP.
