Electronic Brake Control Module/Electronic Brake & Traction Control Module C1

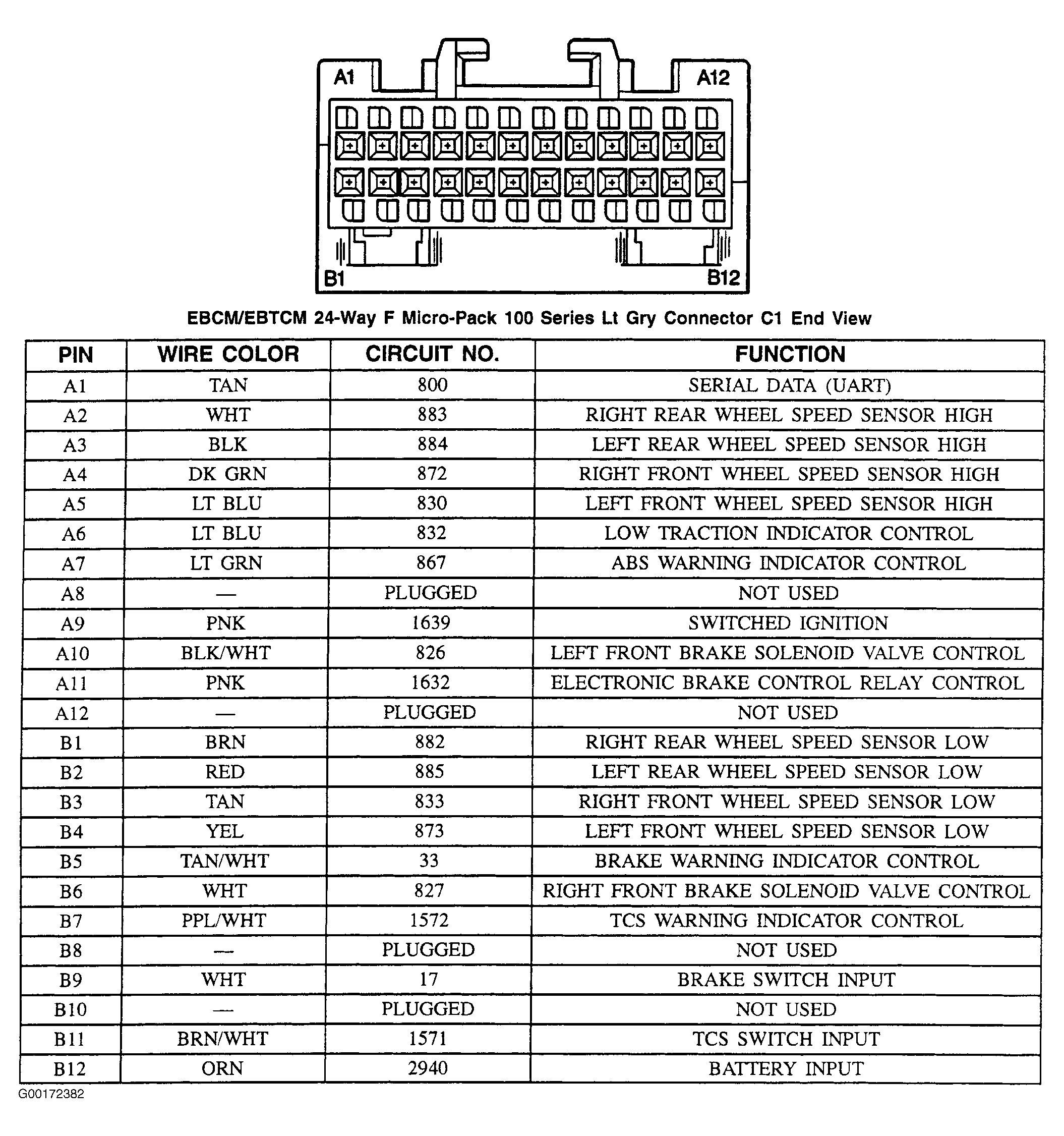

Fig 1: Electronic Brake Control Module/Electronic Brake & Traction Control Module C1 - 24-Pin Connector (Light Gray)
G00172382Courtesy of GENERAL MOTORS CORP.
