Exhaust Gas RECIRCULATION (EGR) Valve

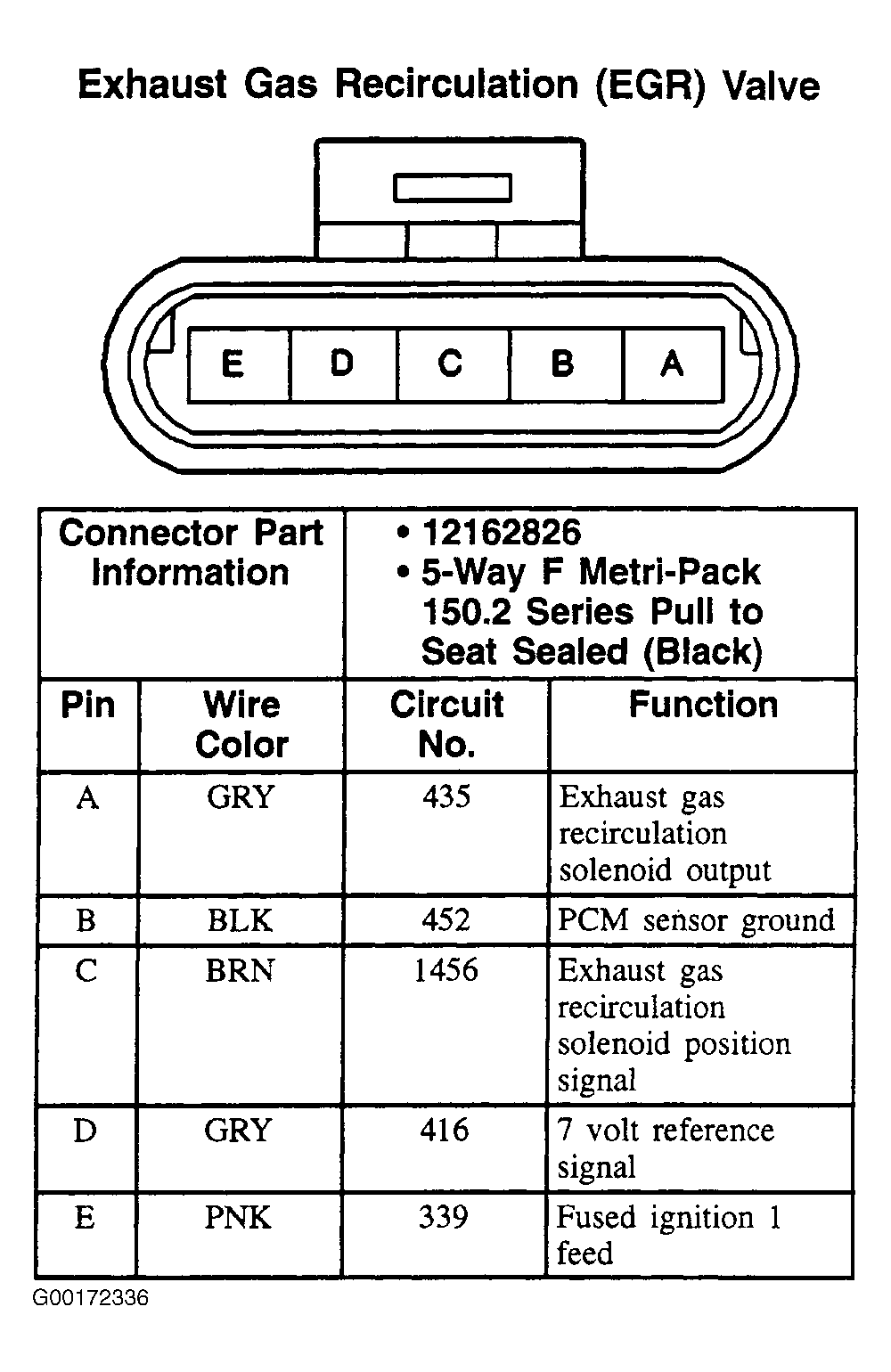

Fig 1: Exhaust Gas Recirculation (EGR) Valve - 5-Pin Connector (Black)
G00172336Courtesy of GENERAL MOTORS CORP.
