Headlamp Switch

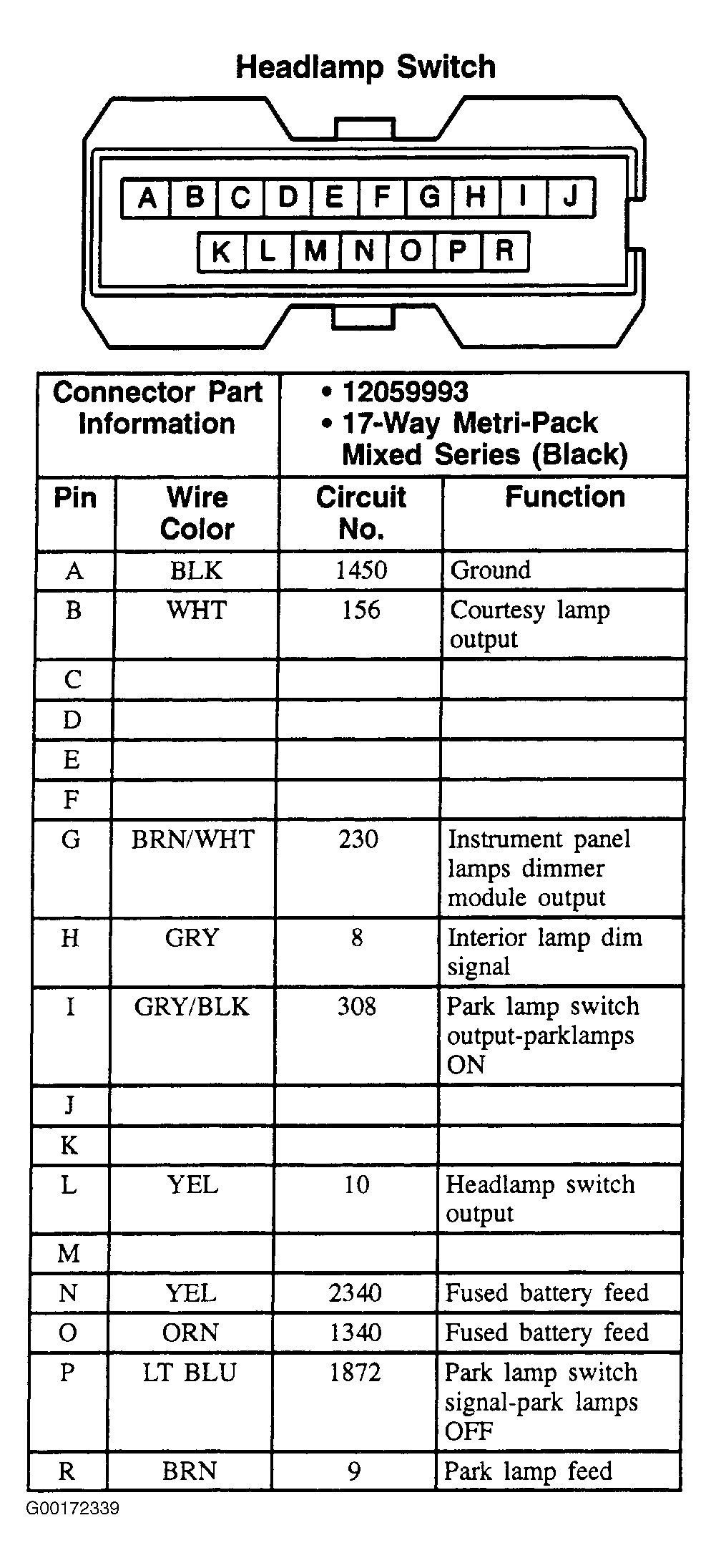

Fig 1: Headlamp Switch - 17-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
