Ignition Control Module (ICM) C1

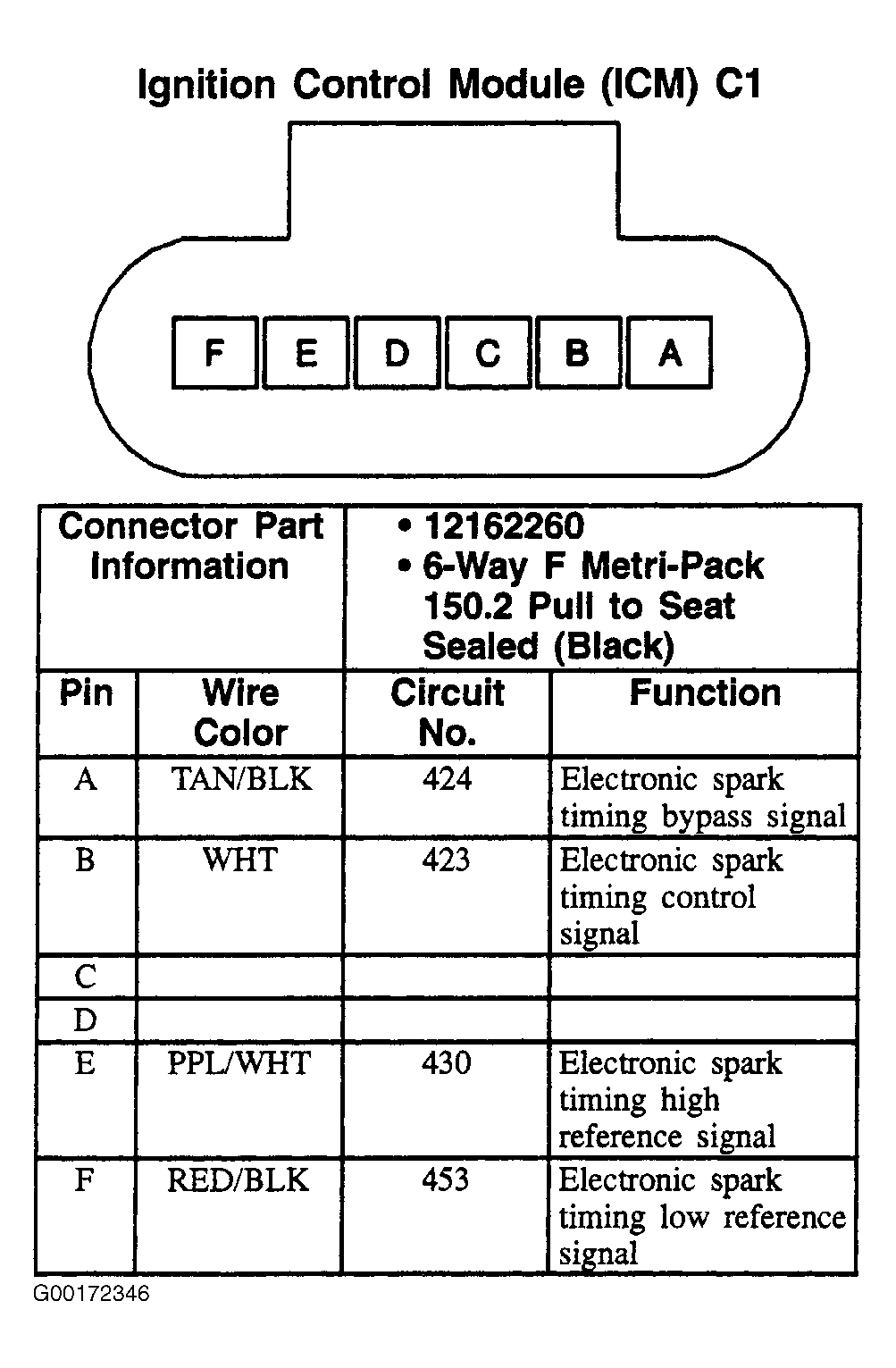

Fig 1: Ignition Control Module (ICM) C1 - 6-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
