Connector Terminal Identification
>>
Outside Rearview Mirror Remote Control Switch
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Outside Rearview Mirror Remote Control Switch

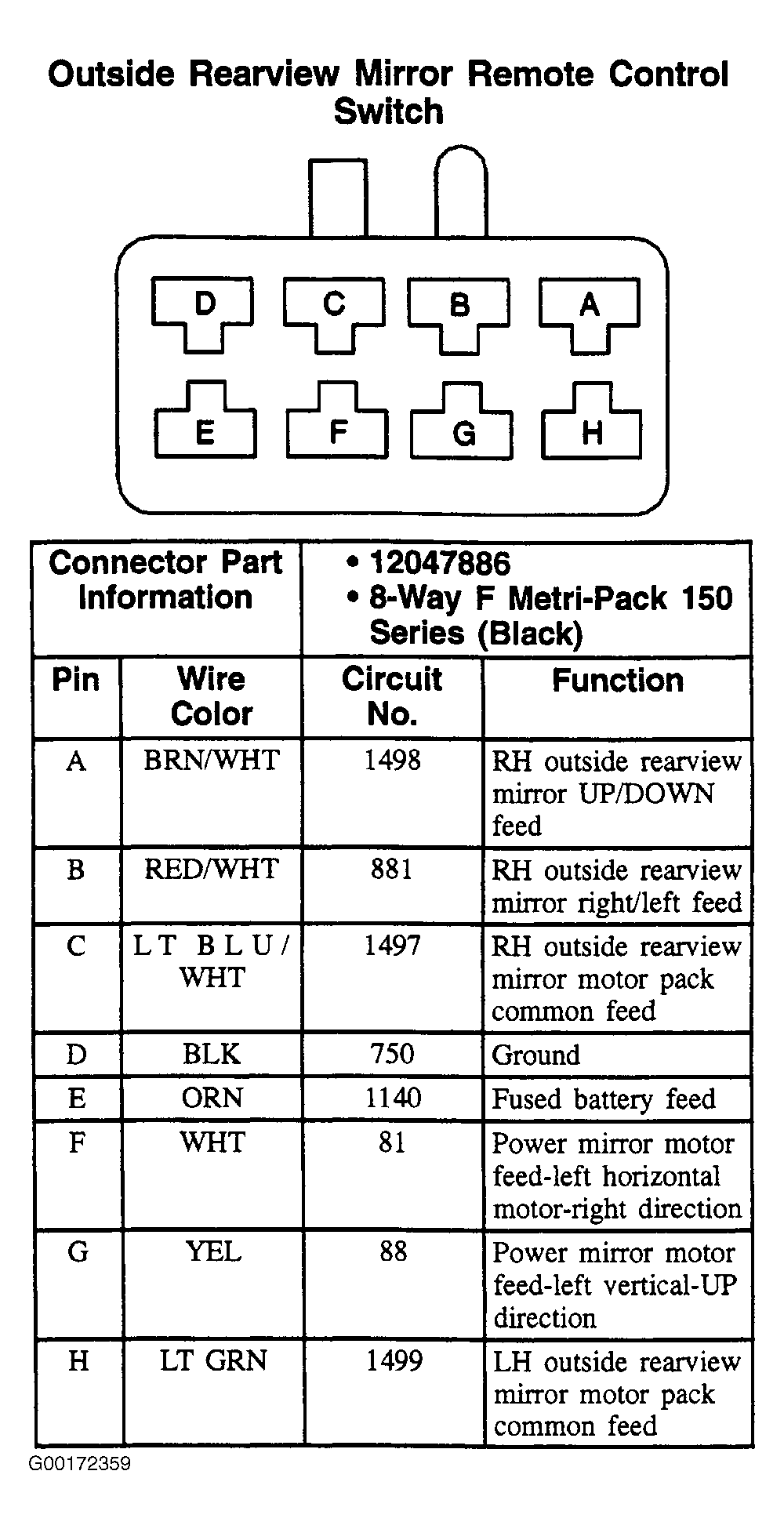

Fig 1: Outside Rearview Mirror Remote Control Switch - 8-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
