Rear Window Wiper/Washer & Multi-Function Switch C1

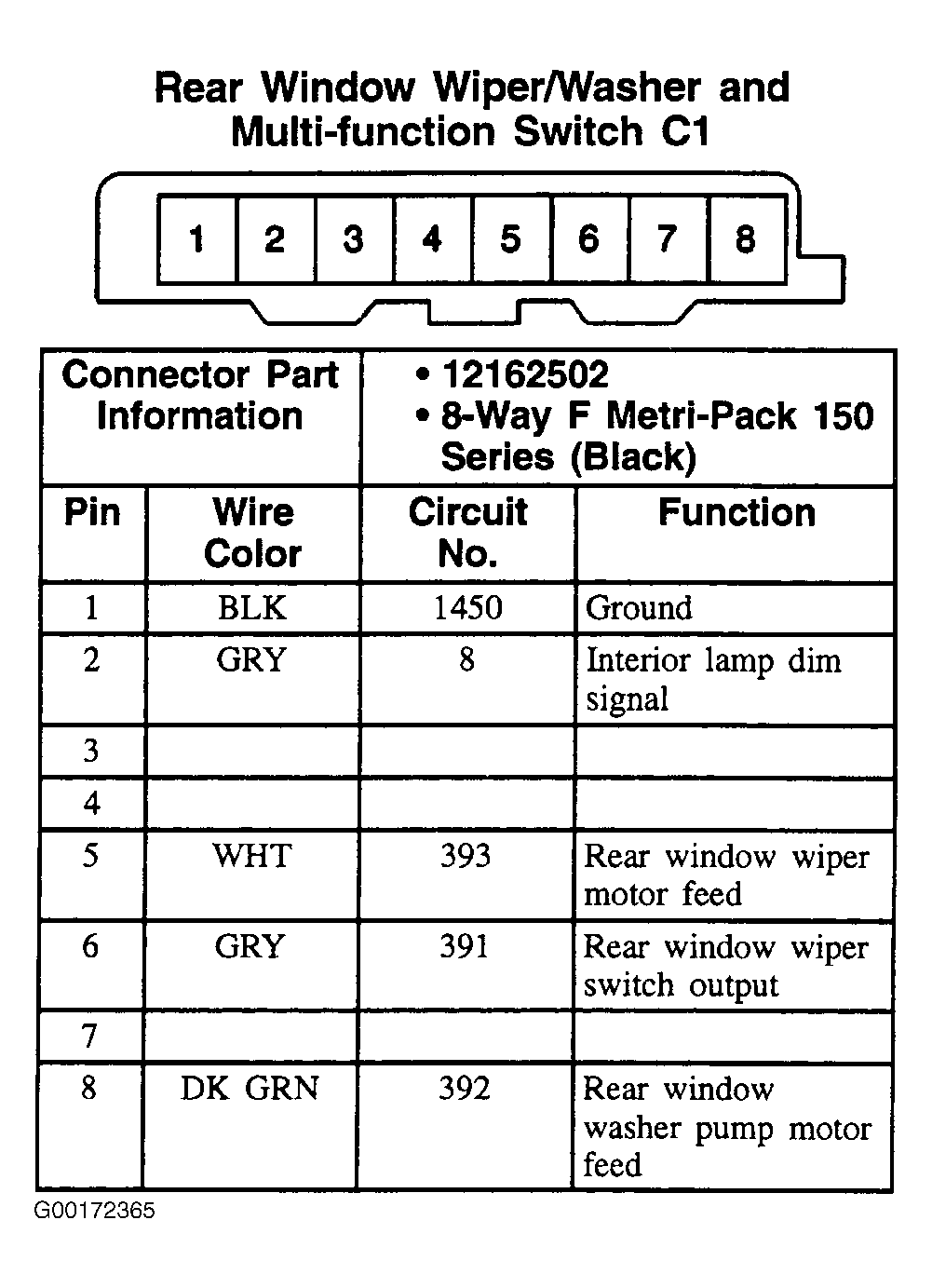

Fig 1: Rear Window Wiper/Washer & Multi-Function Switch C1 - 8-Pin Connector (Black)
G00172365Courtesy of GENERAL MOTORS CORP.
