Rear Window Wiper/Washer & Multi-Function Switch C3

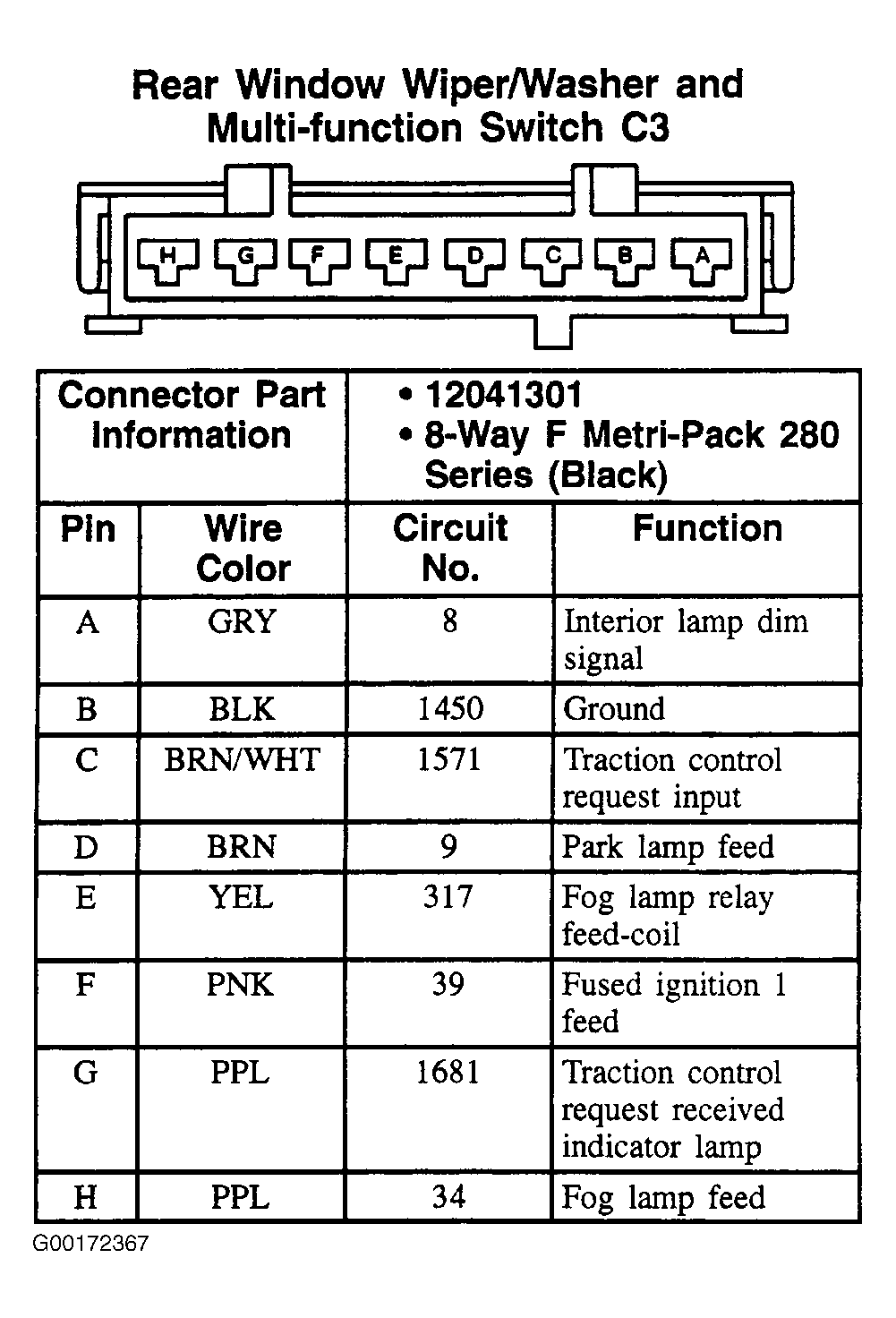

Fig 1: Rear Window Wiper/Washer & Multi-Function Switch C3 - 8-Pin Connector (Black)
G00172367Courtesy of GENERAL MOTORS CORP.
