TAILLAMP (LH & RH)

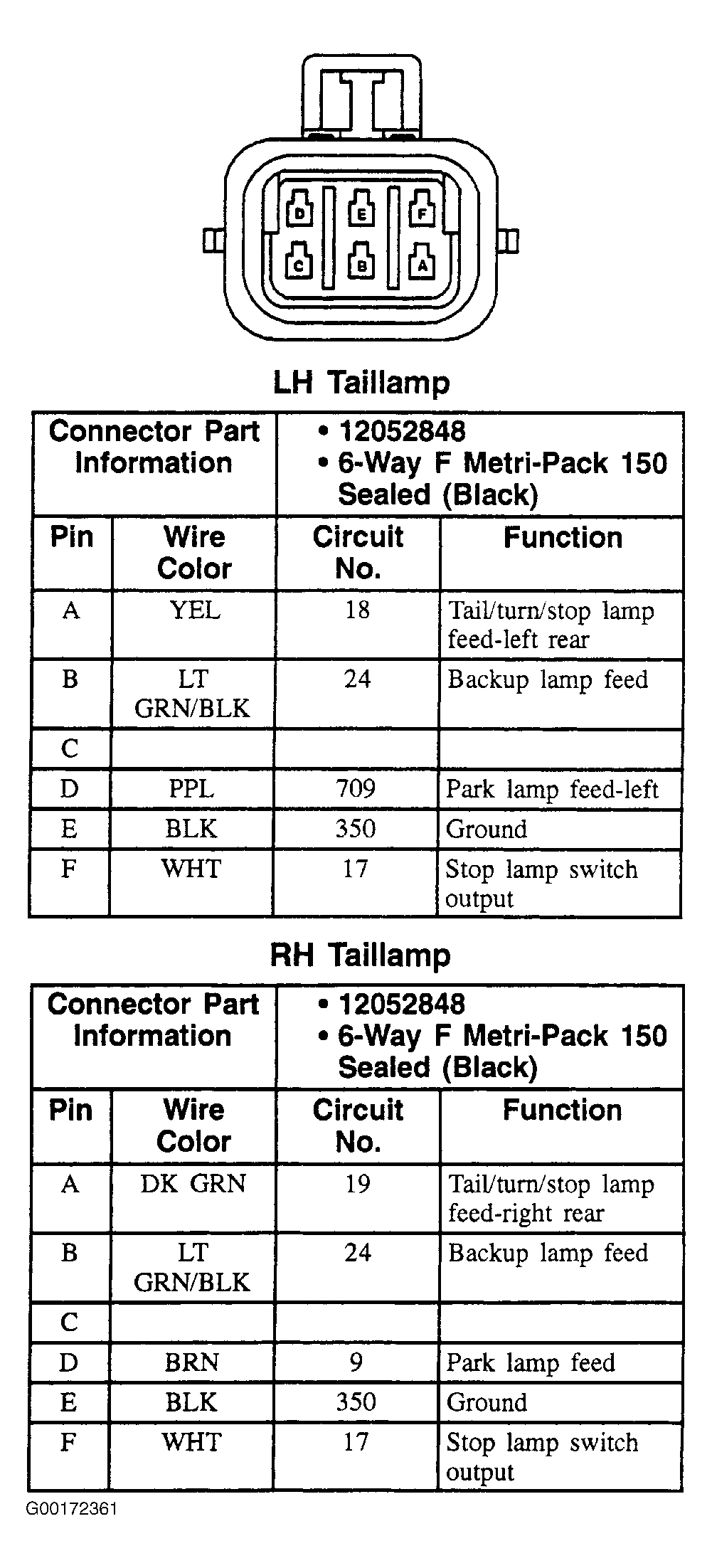

Fig 1: Taillamp (LH & RH) - 6-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
