Shift Interlock Systems: Actuator: Notes
WARNING:
When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION section before disconnecting battery.

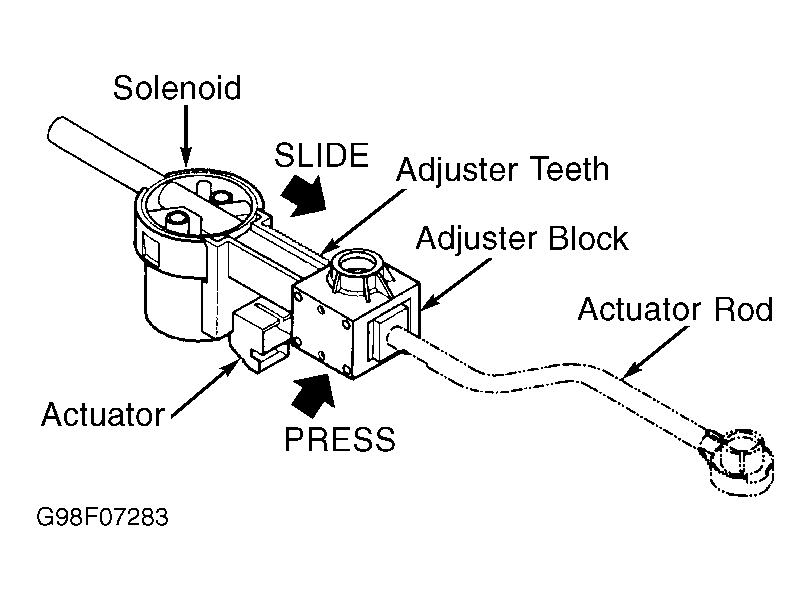

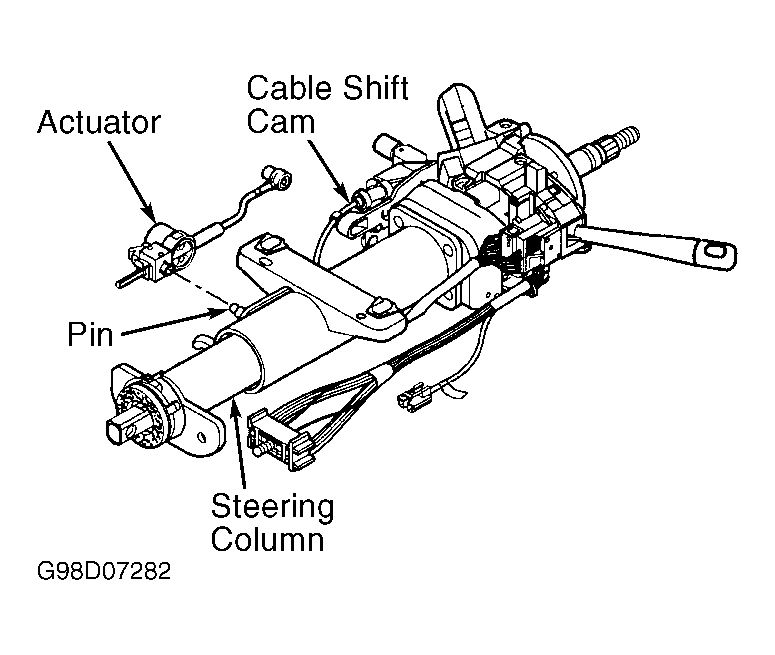

Actuator is located on steering column. See Fig 1 Move actuator rod to adjuster block side for leverage. See Fig 2 . Press on adjuster block to compress internal adjuster spring and engage adjuster teeth. Slide adjuster block as far away from solenoid as possible. Reposition actuator rod to solenoid side. Rod will be visible in hole in actuator block.
