Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

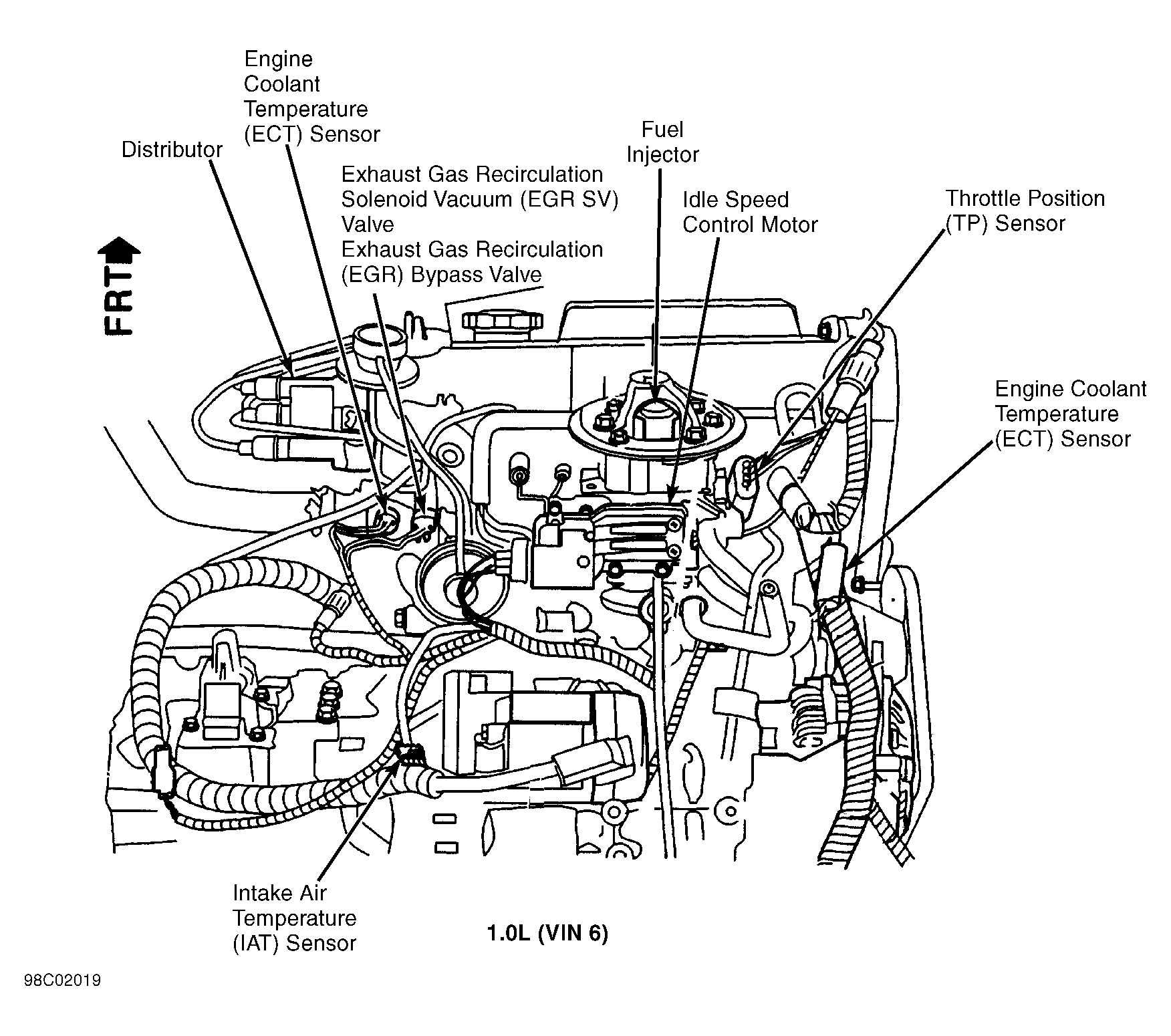

Fig 1: Right Side Of Engine (1.0L VIN 6)

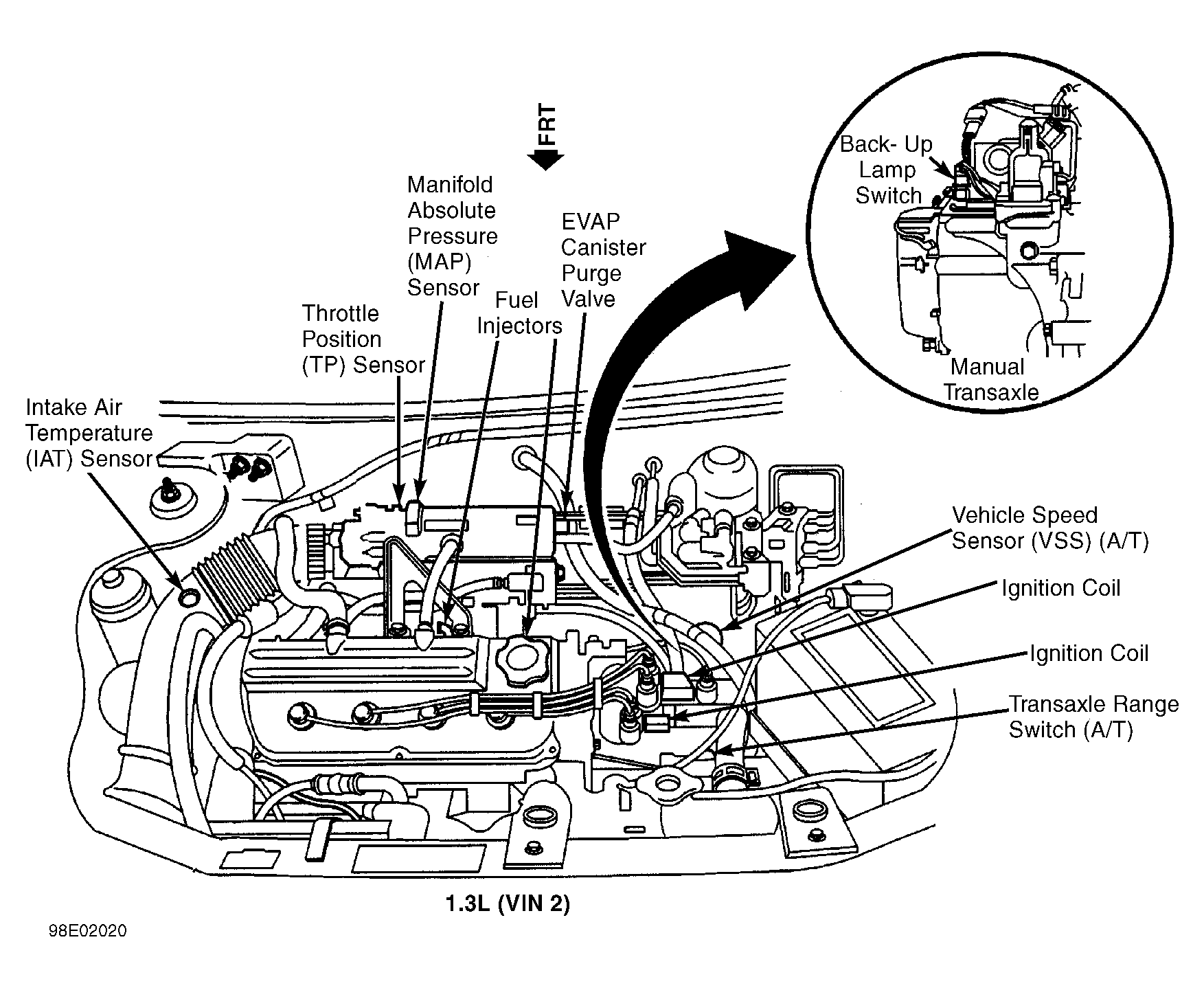

Fig 2: Engine Compartment (1.3L VIN 2)

Fig 3: Left Side Of Engine Compartment

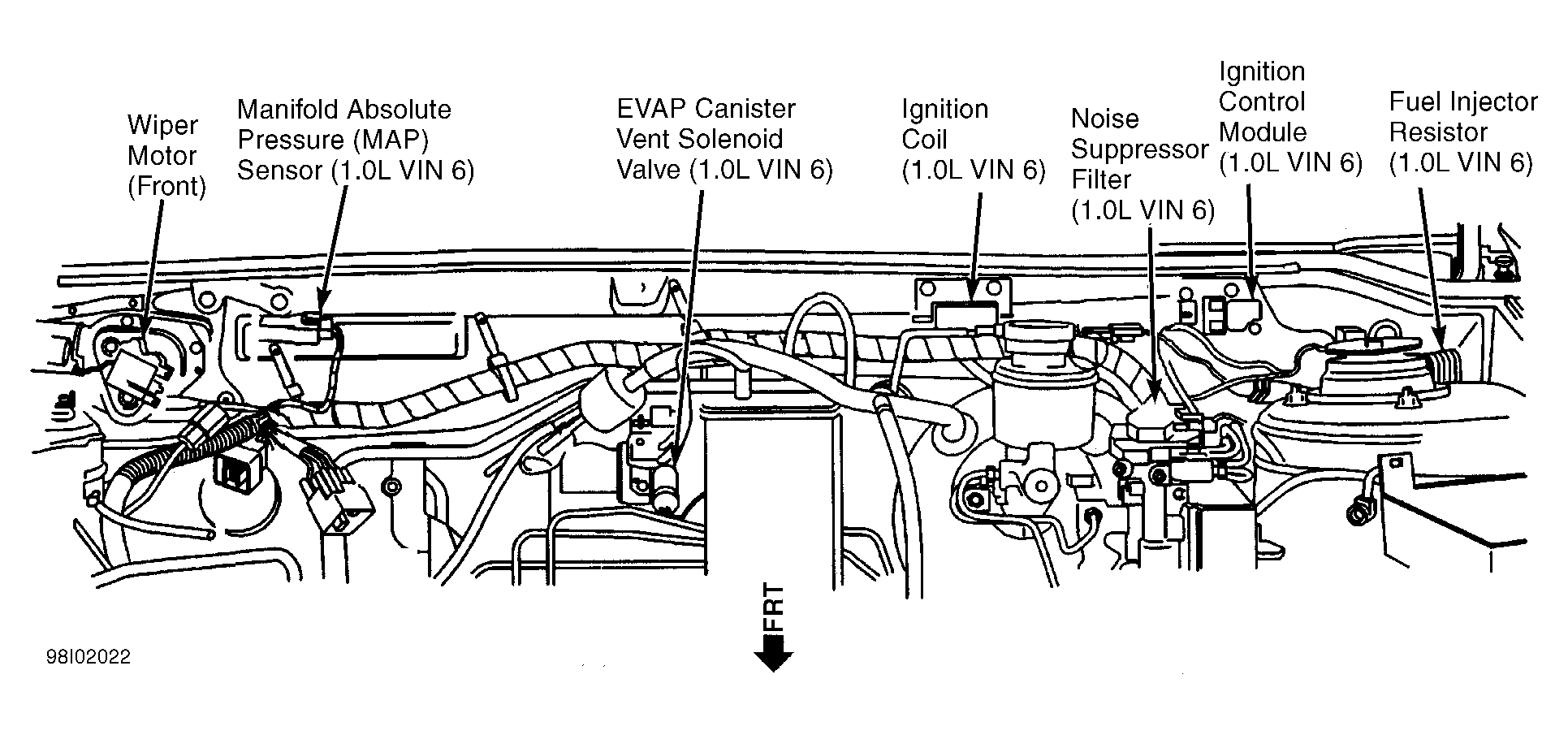

Fig 4: Rear Of Engine Compartment
