Service Point Locations

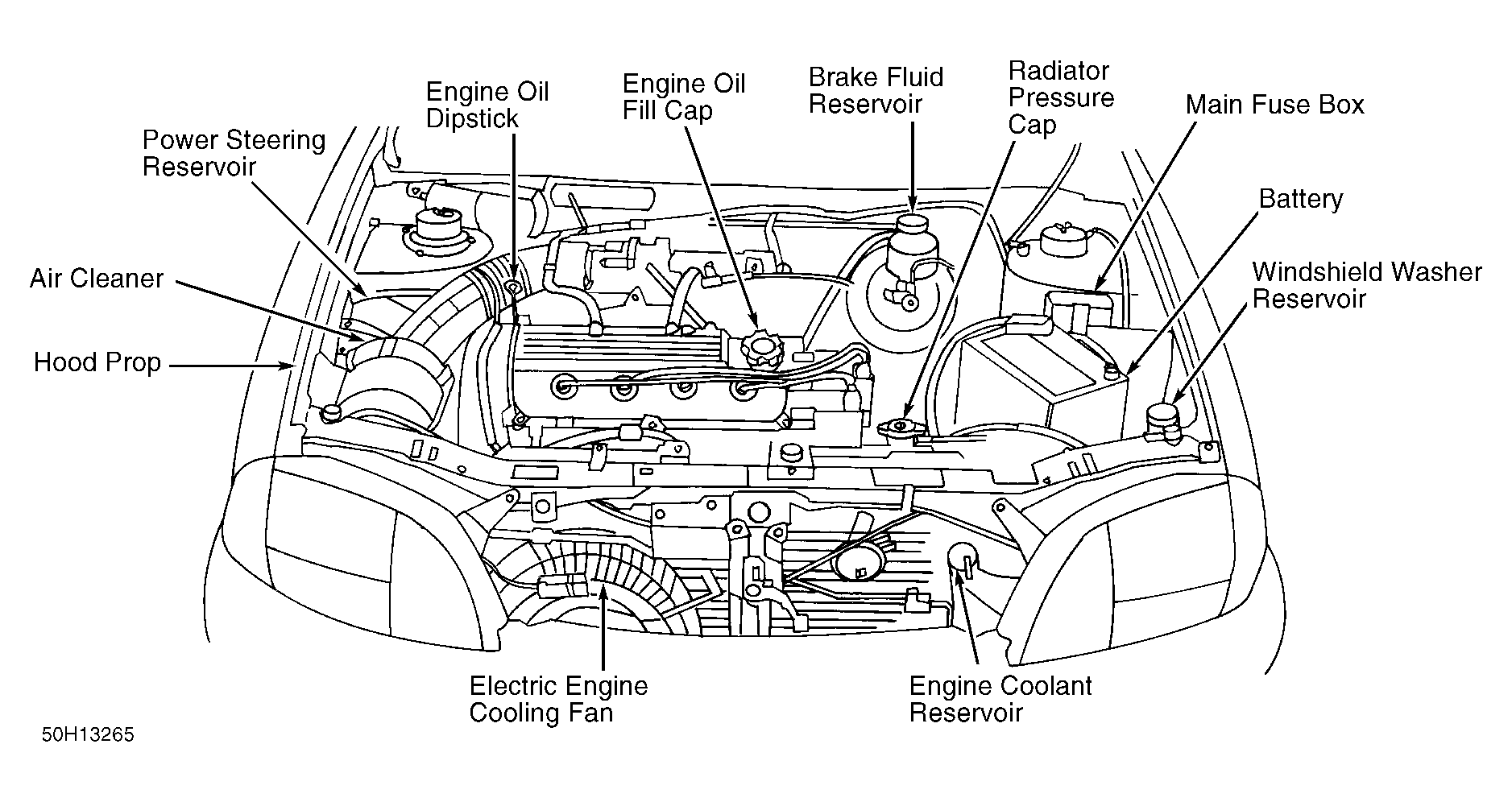

Fig 1: Engine Service Point Locations - 1.3L

Courtesy of GENERAL MOTORS CORP.

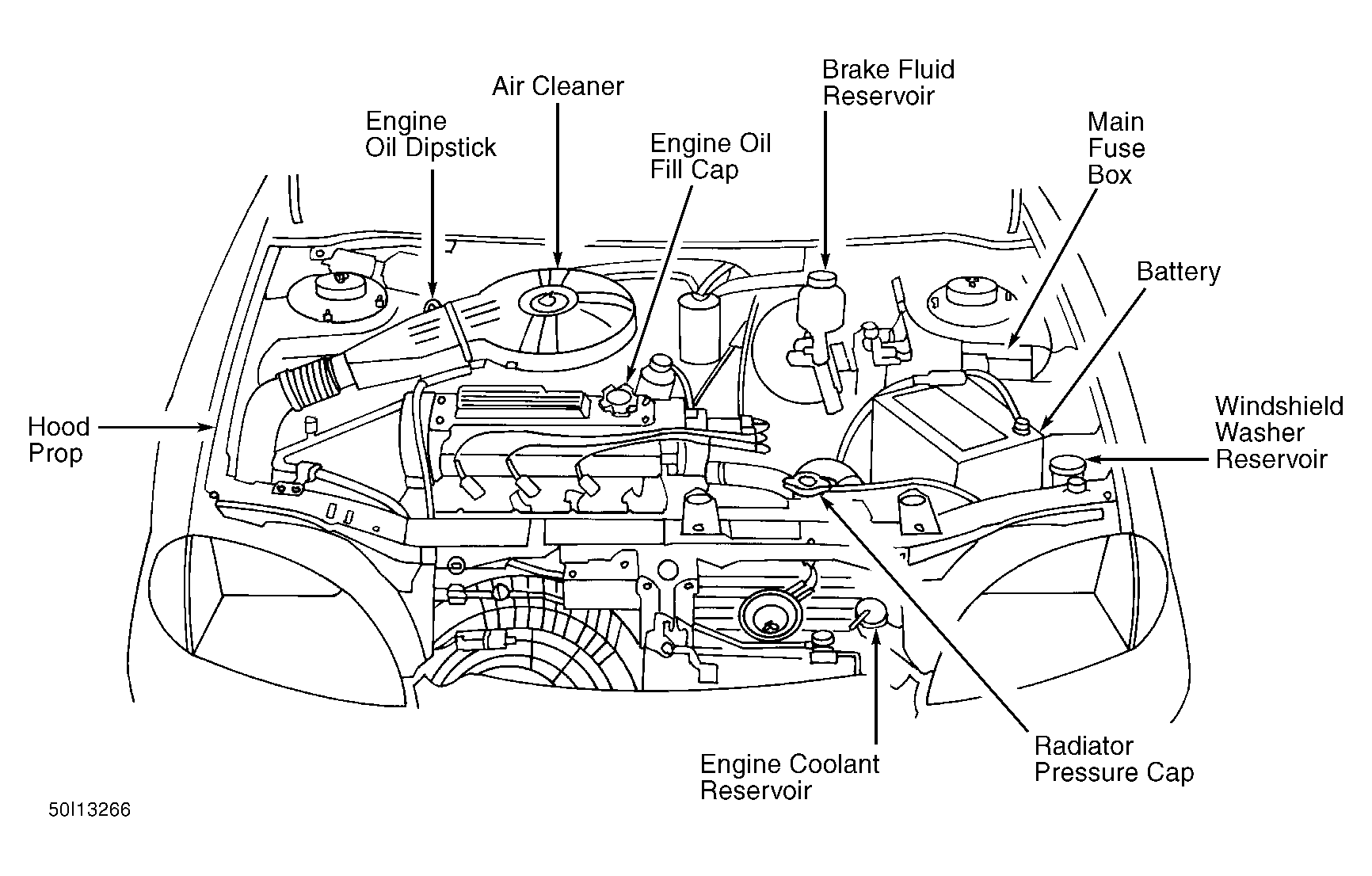

Fig 2: Engine Service Point Locations - 1.0L

Courtesy of GENERAL MOTORS CORP.

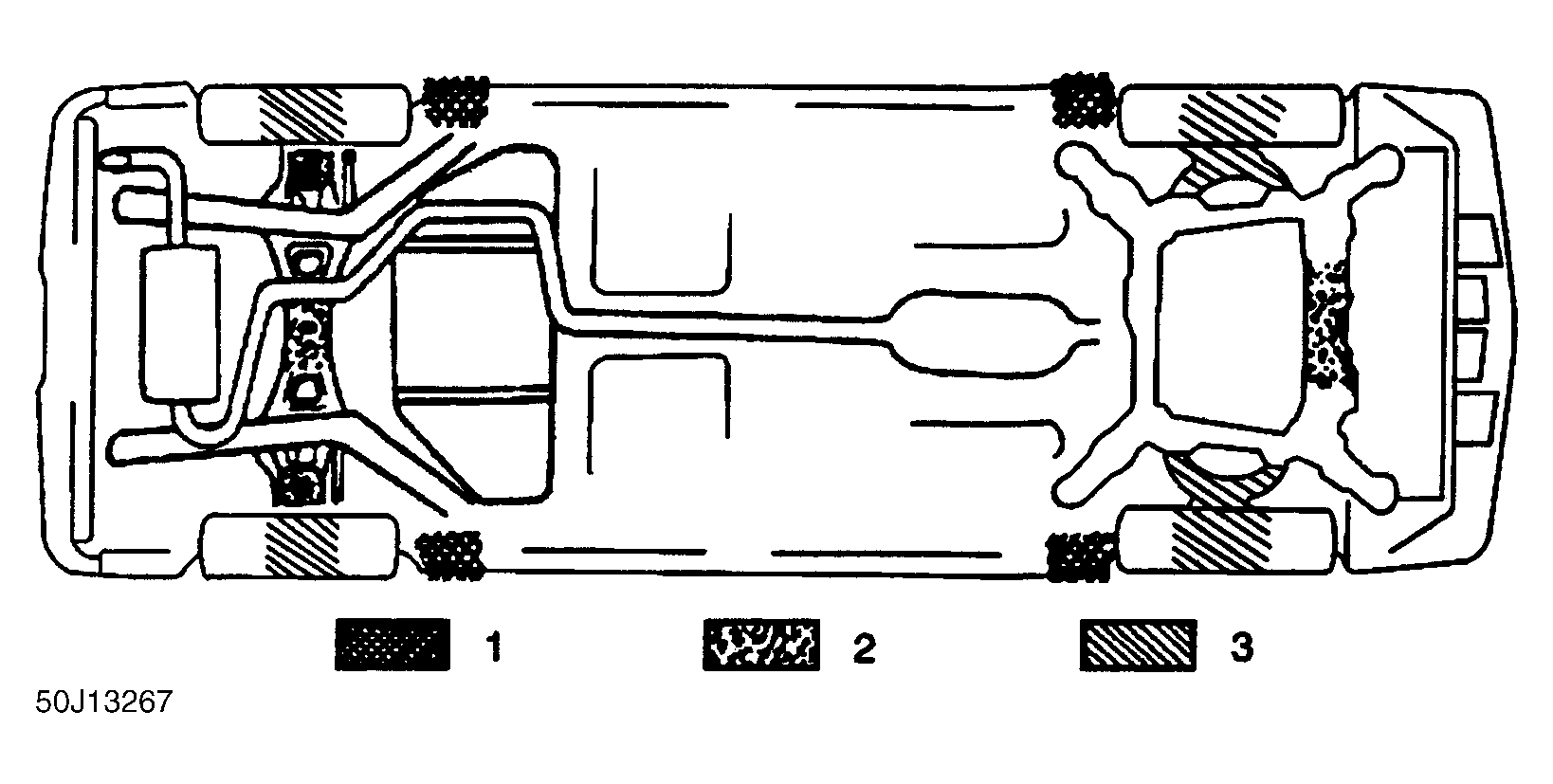

Fig 3: Lift Point Locations

Courtesy of GENERAL MOTORS CORP.

NOTE: For more information regarding lifting and hoisting refer to the JACKING & HOISTING article in the WHEEL ALIGNMENT section.
