Engine Compartment Fuse Panel Identification: Notes

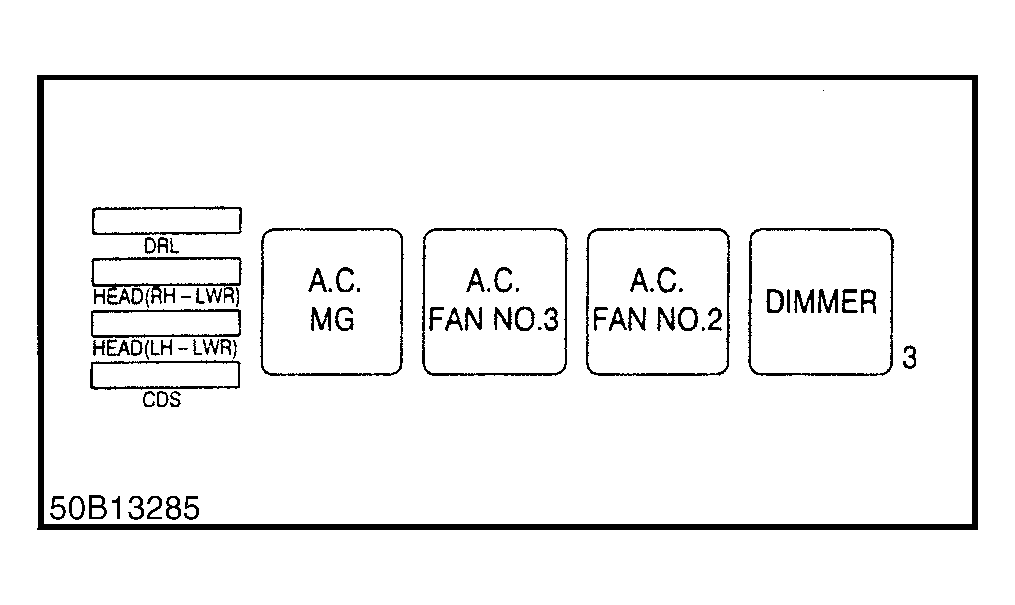

Fig 1: Engine Compartment Fuse Block (Near Air Cleaner)

Courtesy of GENERAL MOTORS CORP.

WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.

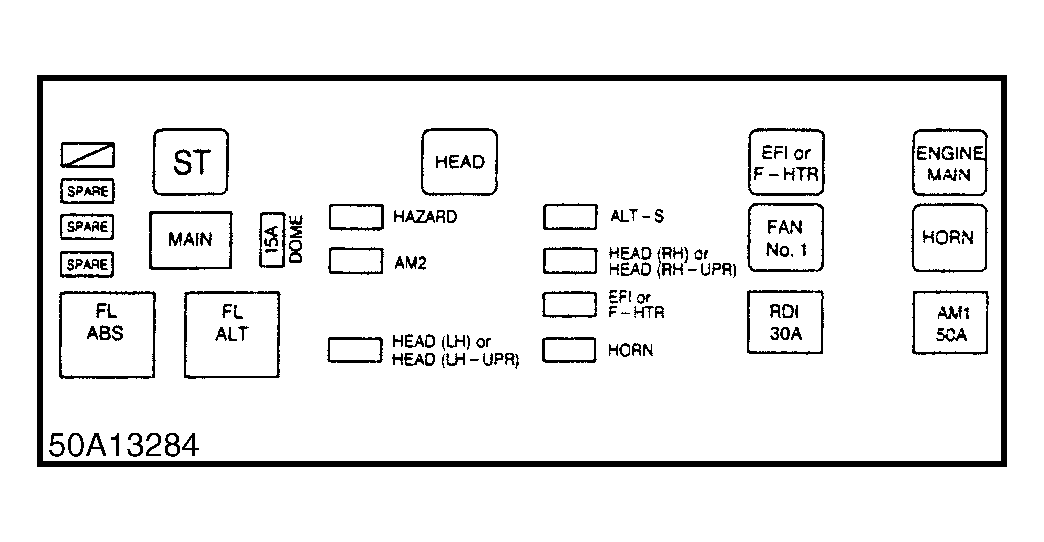

Fig 1: Engine Compartment Fuse Block (Near Battery)

Courtesy of GENERAL MOTORS CORP.

WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.

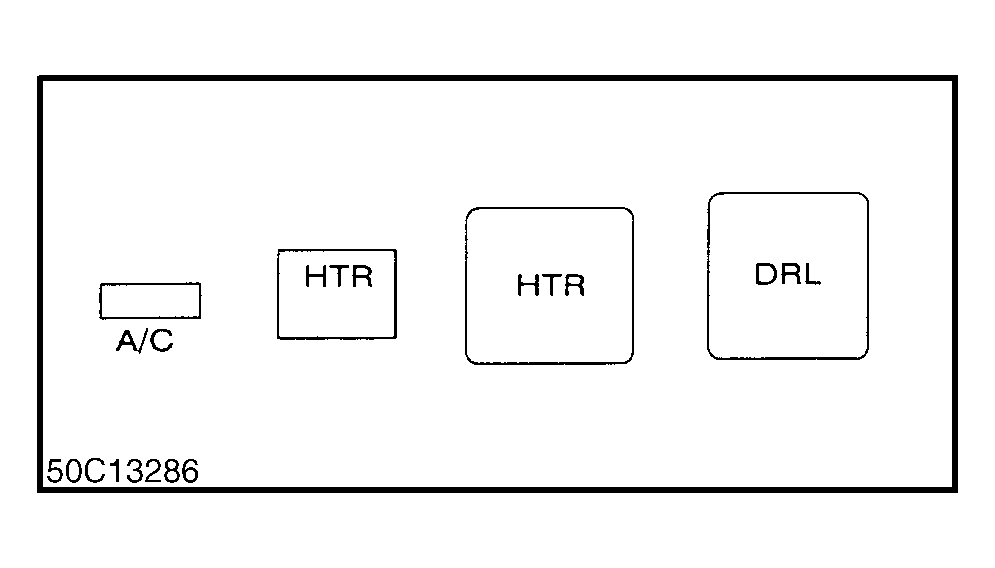

Fig 1: Engine Compartment Fuse Block (Passenger's Side)

Courtesy of GENERAL MOTORS CORP.
