Diagnostic Procedures

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

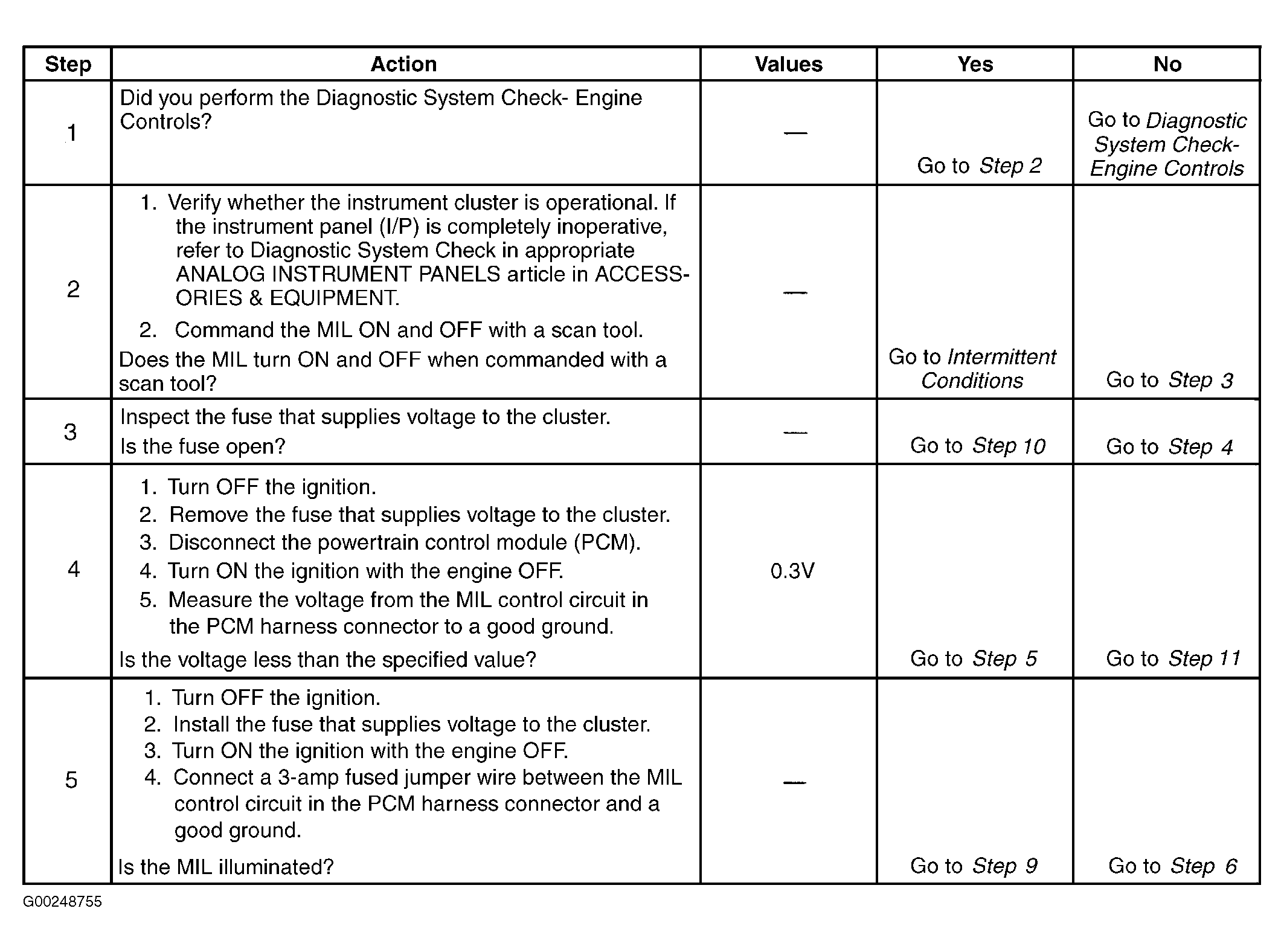

Fig 1: Malfunction Indicator Lamp (MIL) Inoperative (Steps 1-5)
G00248755Courtesy of GENERAL MOTORS CORP.

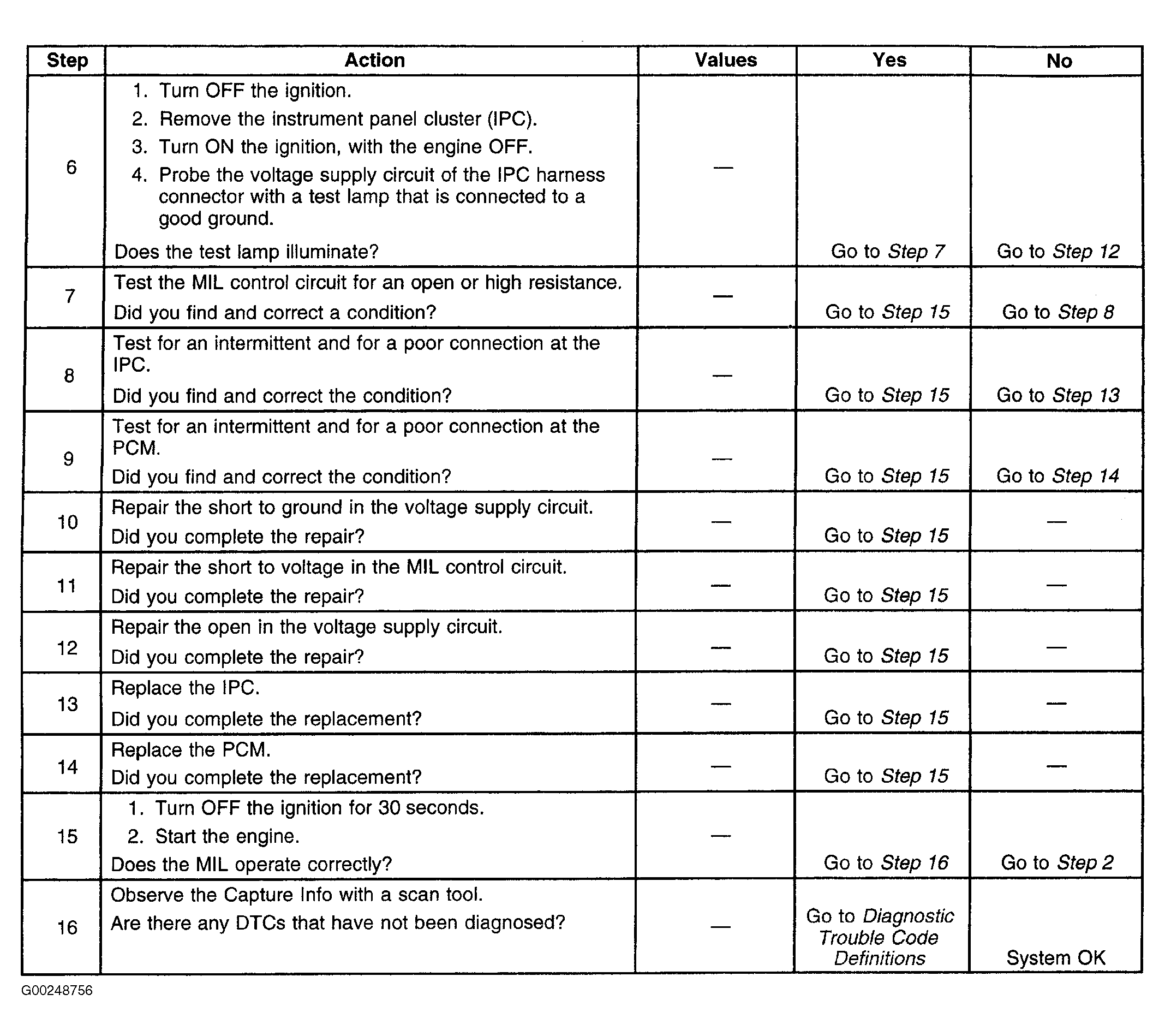

Fig 2: Malfunction Indicator Lamp (MIL) Inoperative (Steps 6-16)
G00248756Courtesy of GENERAL MOTORS CORP.
