Removal (Front)

  1. Remove trim panel.
  2. Remove water deflector.
  3. Remove window.
  4. Disconnect electrical connector (1). See Fig 1 .
  5. Remove window regulator bolts (2, 3).
  6. Remove window regulator cam nut.
  7. Remove rivets (5).
  8. Remove window regulator cam bolt.
  9. Remove regulator (4).

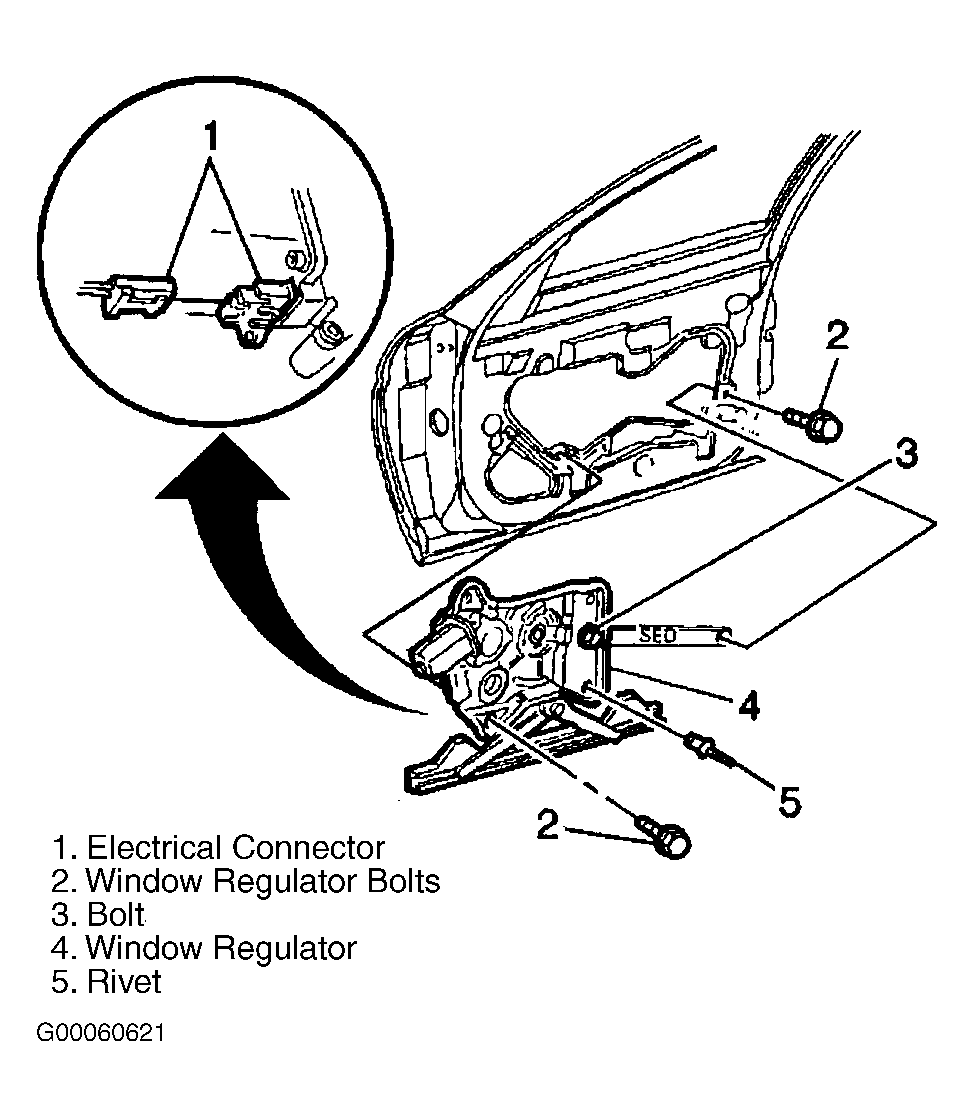

Fig 1: Removing Front Power Window Regulator
G00060621Courtesy of GENERAL MOTORS CORP.
