Removal (Front)

CAUTION: Disconnect power window switch when working inside driver door. When operated, express up/down feature allows door window to move very quickly without stopping, which could cause personal injury.

NOTE: When removing a door trim panel or switch plate, ignition switch must be in OFF position. This eliminates possibility of shorting out switch if a flat-bladed tool, awl or metal object is used to remove switch from harness.

NOTE: Use protective coating/tape at point of insertion of flat surface tool.

Remove armrest pull cup mounting screw. See Fig 1 .
Remove pull cup from inner trim panel.
Disconnect electrical connector.
Unsnap power window switch from pull cup. See Fig 2 .

Fig 1: Removing & Installing Pull Cup

Courtesy of GENERAL MOTORS CORP.

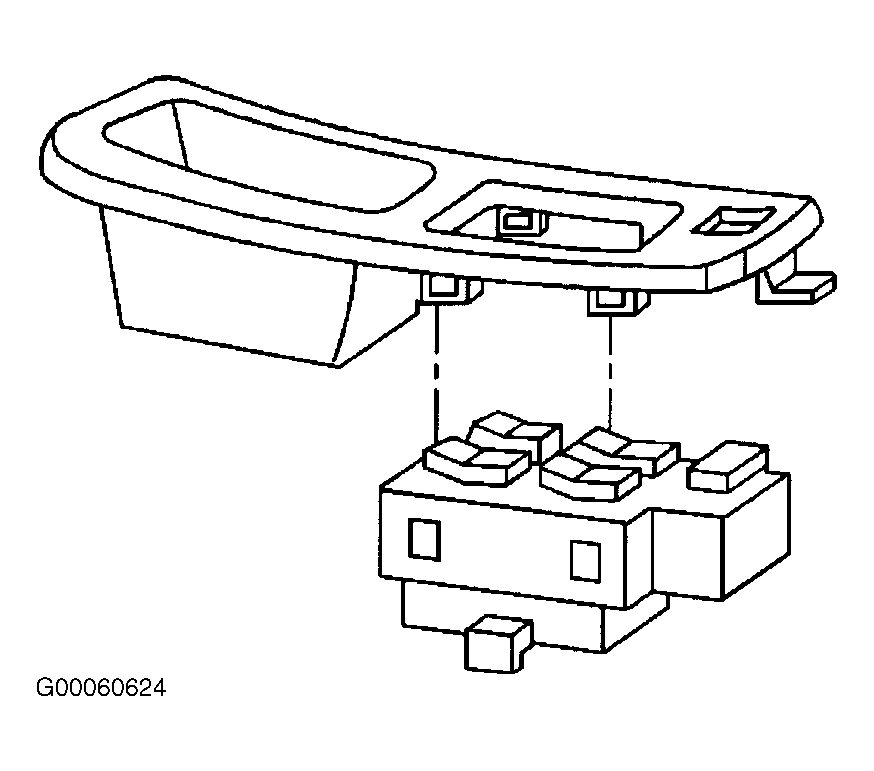

Fig 2: Removing & Installing Power Window Master Switch

Courtesy of GENERAL MOTORS CORP.
